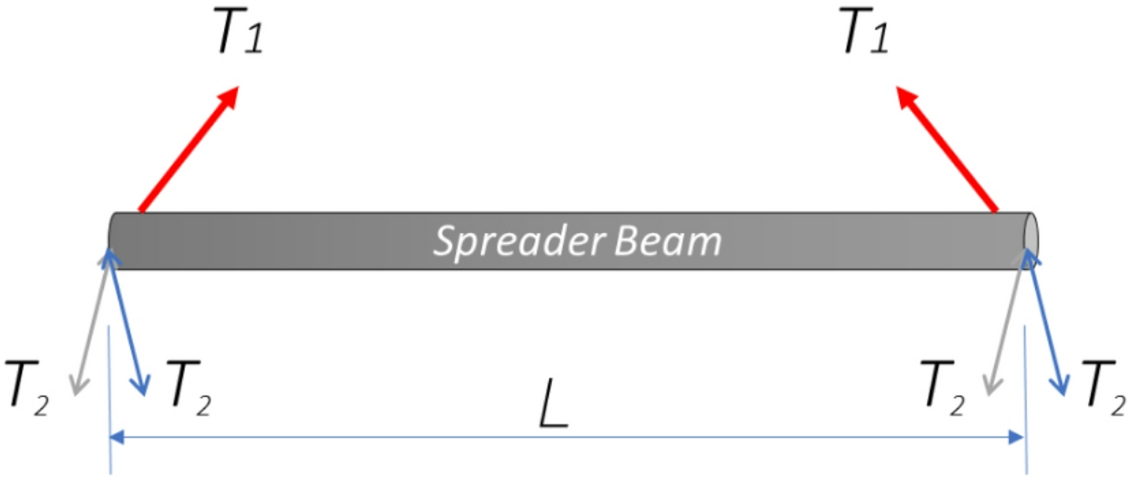

Fig. 2
Schematic outlining the primary design requirements for the 30-ton spreader beam case study: a 30-ton SWL with a 2:1 design factor (ASME BTH-1, Category A1, a two-top/four-bottom lug configuration, and a defined span length for load clearance.
