Fig. 8

From: A validated workflow for the design and certification of below-the-hook lifting devices integrating finite element analysis and physical proof testing

Fig. 8

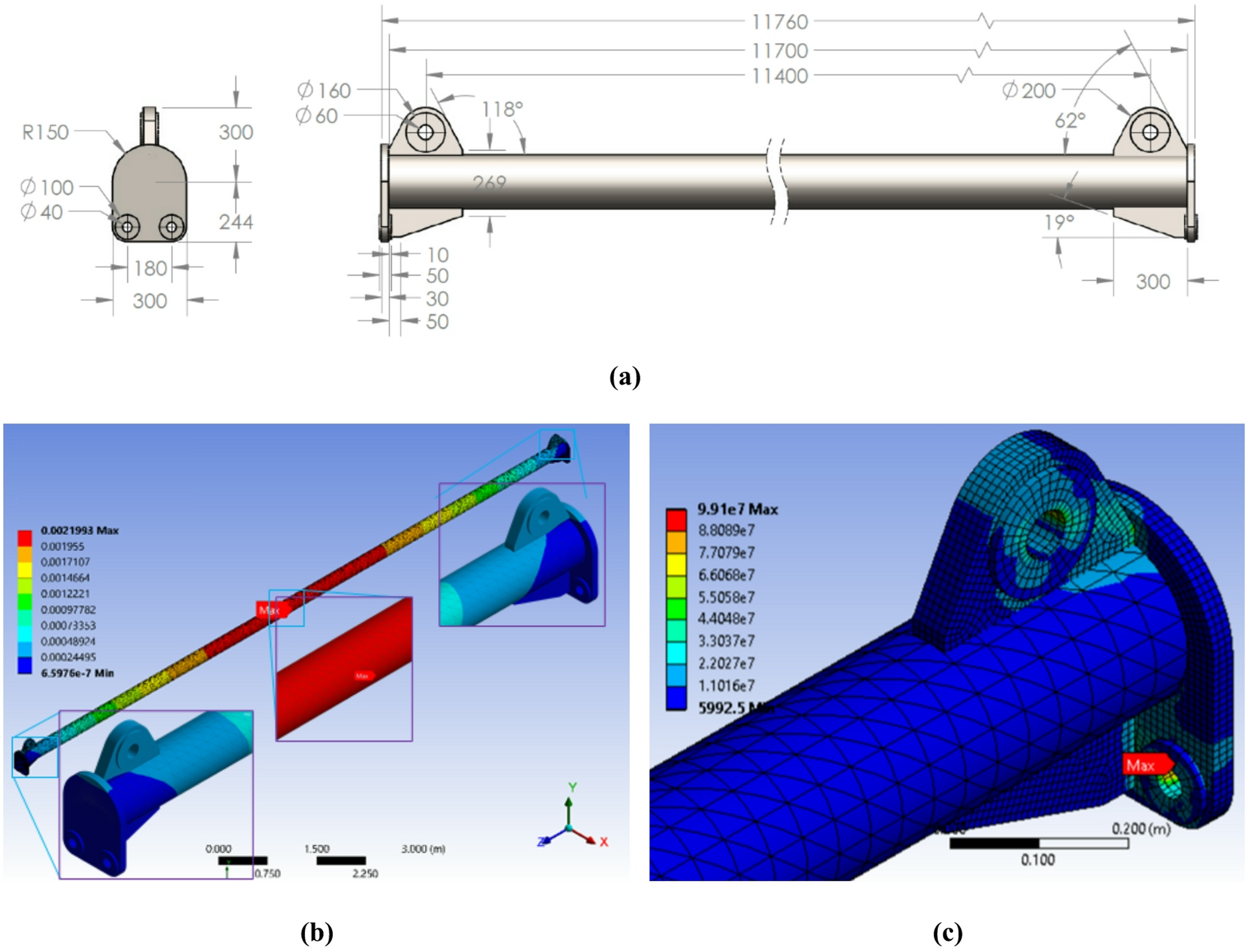

The final, manufacturable design: (a) key modification showing the reinforced top lug assembly to enhance shear resistance, (b) the total deformation along the spreader beam, and (c) the results of the converged FEA model, showing a uniform stress distribution with a maximum von Mises stress of 99.1 MPa. This results in a safety factor of 2.52, successfully validating the structural integrity for the 30-ton service load. All dimensions are in millimeters (mm), Finite element results generated using ANSYS R18.1.
