Fig. 3
From: Phase contrast CMR in the descending aorta as a supportive reference for severe aortic regurgitation

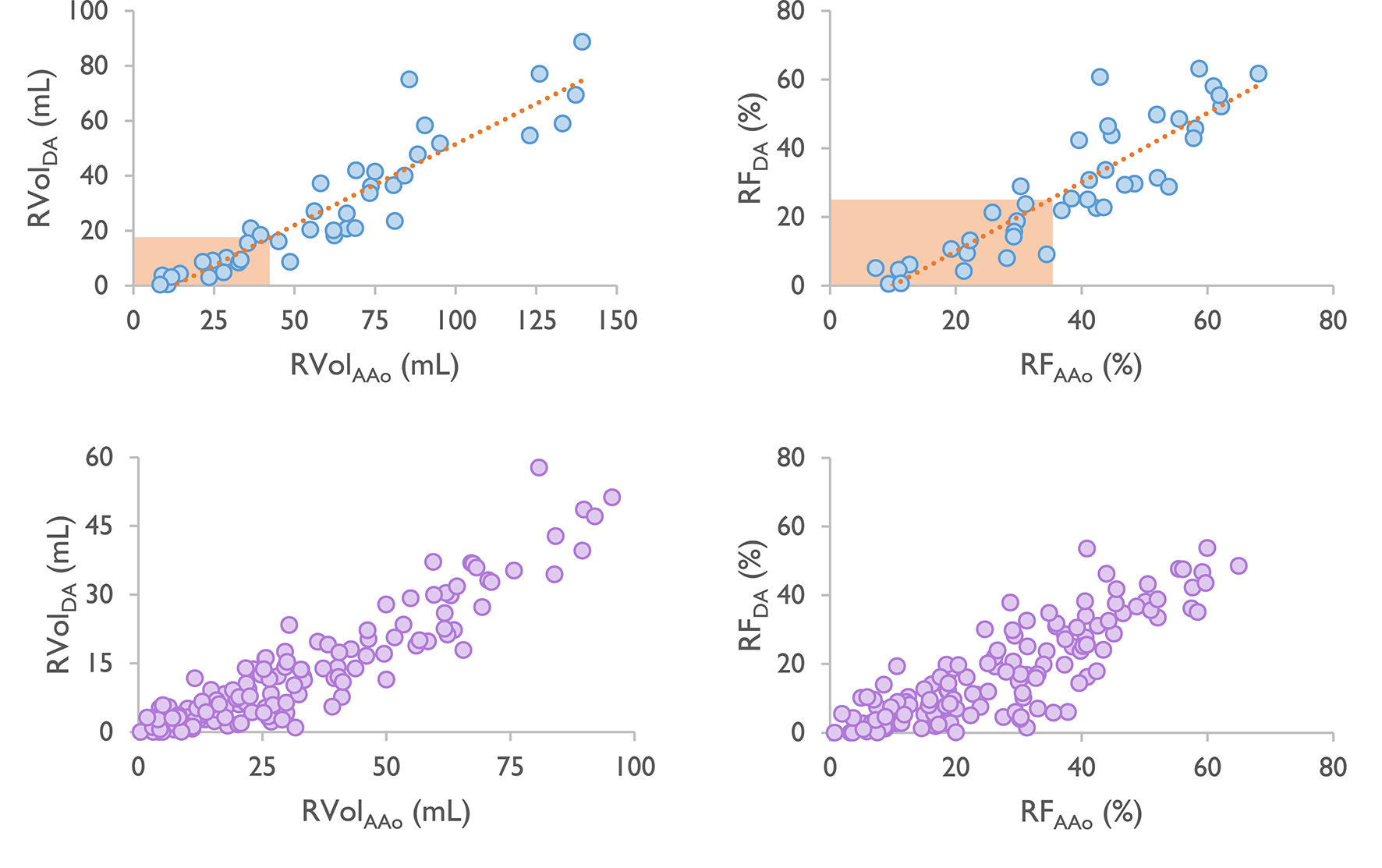

Upper panel: Correlation plots showing the association for RVol (left) and RF (right) between the ascending (PC-CMRAAo1) and descending aorta (PC-CMRDA2) in cohort 1. Linear equation [RVol]:\(\:y=0.59x-7.43\), R-value[RVol]=0.93, linear equation[RF]:\(\:y=1.01x-10.04\), R-value[RF] = 0.89. The orange box visualizes calculated threshold values for the descending aorta (17mL, 23%) based on Myerson’s threshold values for the ascending aorta (42mL, 33%)9. Lower panel: Correlation plots showing the association for RVol (left) and RF (right) between the ascending (PC-CMRAAo1) and descending aorta (PC-CMRDA1) in cohort 2.
