From: Prognostic value and biological role of STING-related genes GAB3 and IL16 in lung adenocarcinoma: implications for immune evasion and treatment

Fig. 8

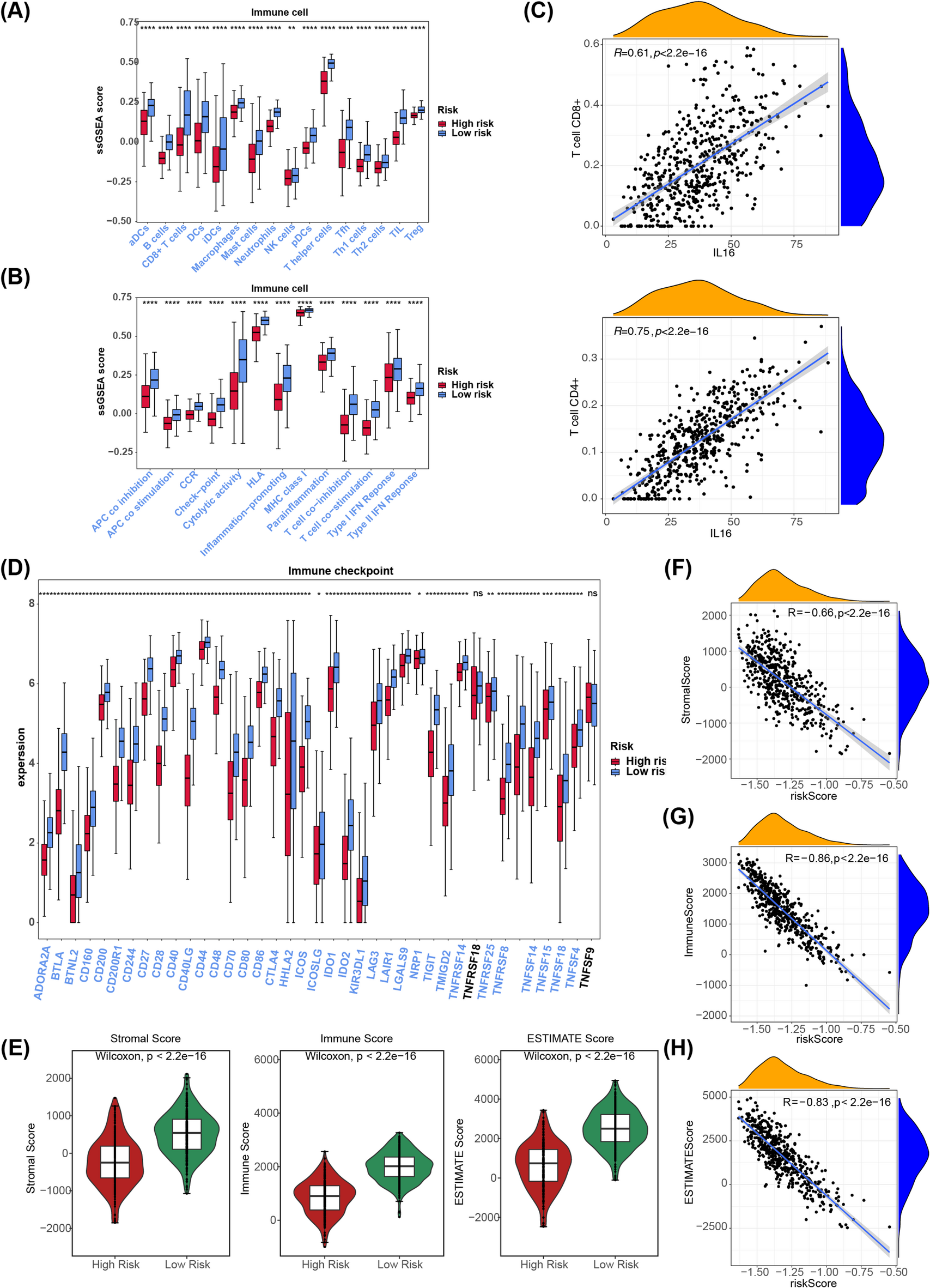

Analysis of immunization status. (A) Expression levels of 16 cell types in HRG as well as LRG. (B) Expression of 13 immune function enrichment scores in HRG as well as LRG. (C) The correlation between IL-16 and immune cells. (D) Expression levels of 36 immune checkpoints in HRG as well as LRG. (E) Immunity Score, Stromal Score, and ESTIMATE Score in HRG as well as LRG. (F-H) Association between Immunity Score, Stromal Score, ESTIMATE Score, and RS. “ns” indicates non-significant results.
