Fig. 8 | Scientific Reports

Fig. 8

From: Features and trends of marine heat waves and marine cold spells along the Western Iberian Coast from four decades of satellite data

Fig. 8

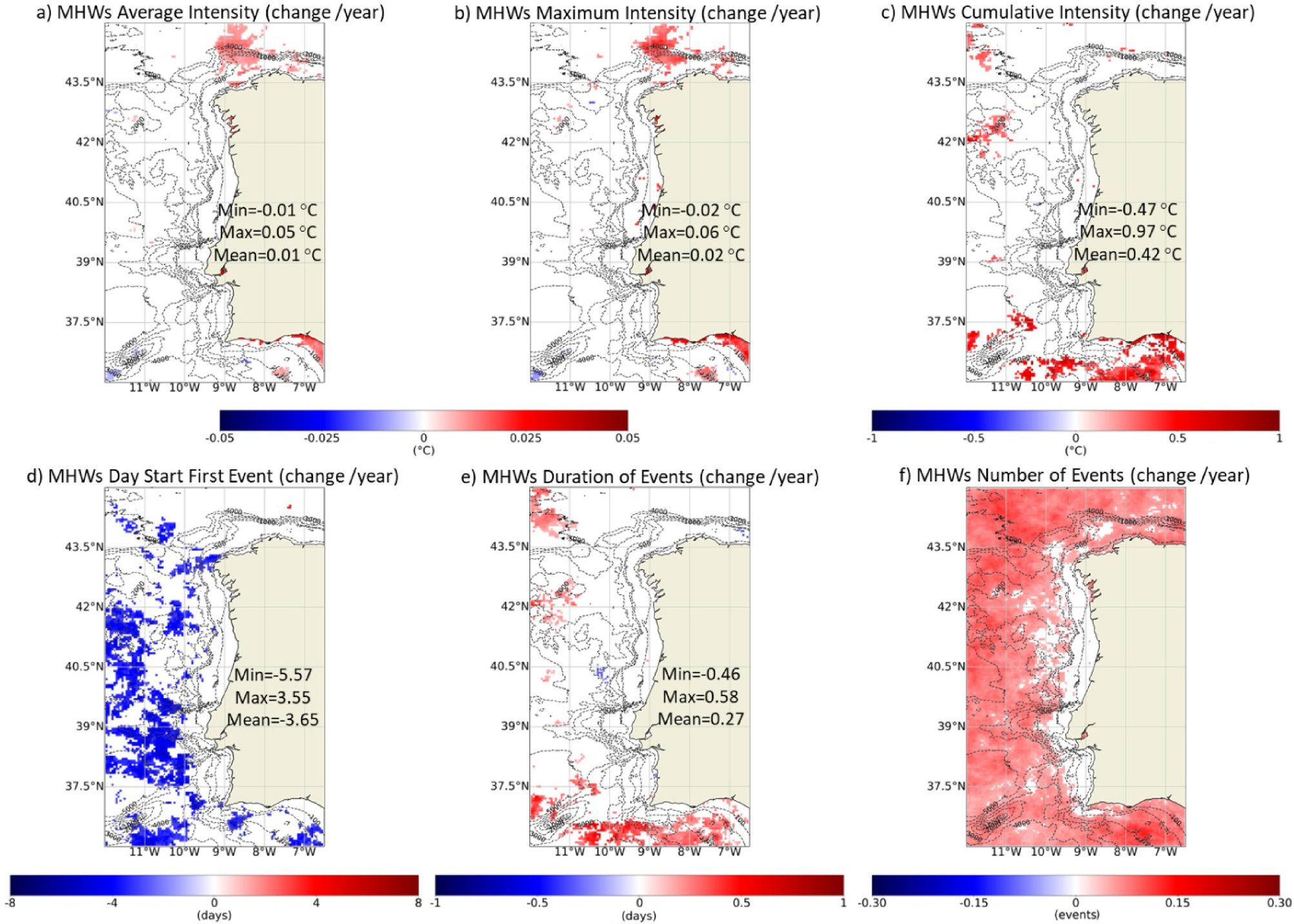

Trends (change/year) of MHWs average (a), maximum (b) and cumulative intensity (c), first day of the event (d), duration (e) and number of events per year (f) considering the period between 1982 and 2022. Only significant changes are colored (p-value < 0.05). Results obtained using the satellite-derived Sea Surface Temperature data from ESA CCI project. Bathymetry data source: GEBCO Compilation Group (2022) GEBCO 2022 Grid (doi: https://doi.org/10.5285/e0f0bb80-ab44-2739-e053-6c86abc0289c).
