Fig. 4

From: Comprehensive genome-wide identification and analysis of MYB transcription factors related to abiotic and biotic stress regulation in rice

Fig. 4

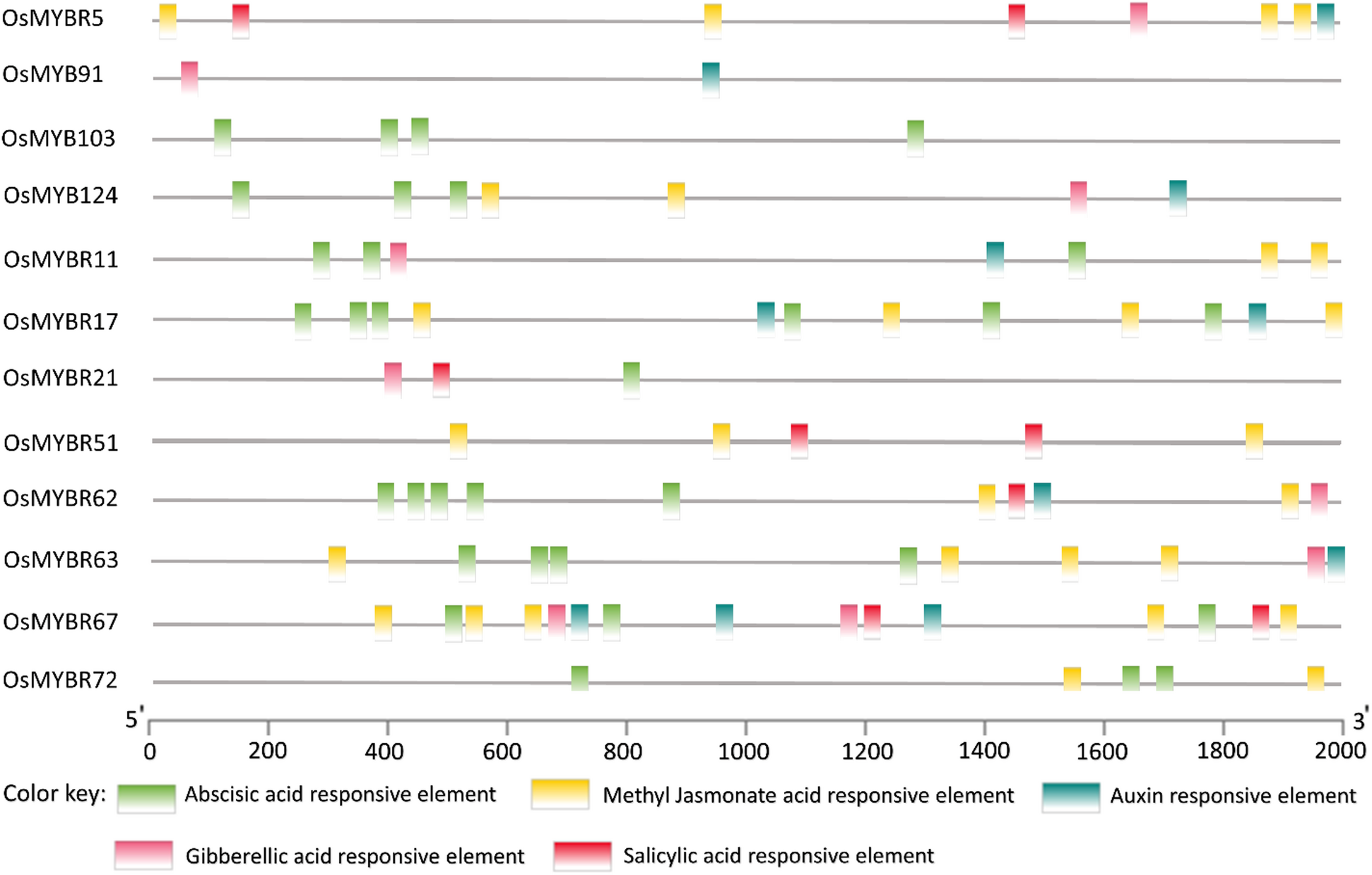

Phytohormonal cis-acting elements analysis of the KGs. Different color boxes indicated the different types of phytohormonal cis-acting elements such as Abscisic acid responsive elements, Methyl Jasmonate acid responsive elements, Auxin responsive elements, Gibberellic acid responsive elements, and Salicylic acid responsive elements. The scale provided at the bottom can be used to assess the size of the upstream promoter sequences (2000 bp).
