From: Growth strategy of aerial green algae on building materials in the temperate climate zone and its relevance to substrate biodeterioration

Fig. 5

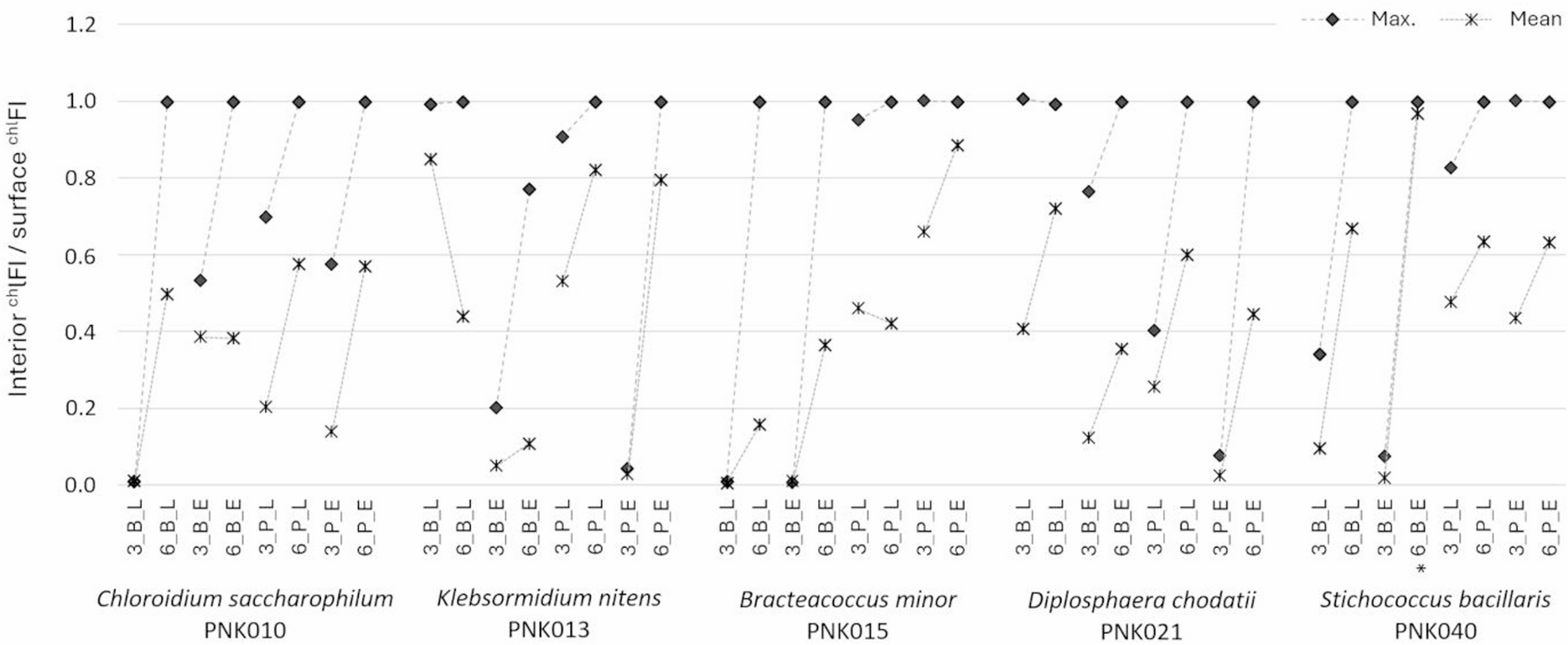

The rate of the chlorophyll fluorescence intensity (chlFI) between the interior and the surface of substrates detected at cross-sections of materials in the confocal scanning-laser microscope after three (3) and six (6) months of algal cultivation on brick (B) and plaster (P) in laboratory (L) and environmental (E) conditions; (*) point at sample with p-value > 0.05 in the interior and surface chlFI, while dash line connects the change between the 3rd and 6th months of the experiment.
