From: Unveiling potent xanthine oxidase inhibitors in two Balanophora spp. using machine learning-based virtual screening and molecular docking approach

Fig. 3The alternative text for this image may have been generated using AI.Fig. 3The alternative text for this image may have been generated using AI.

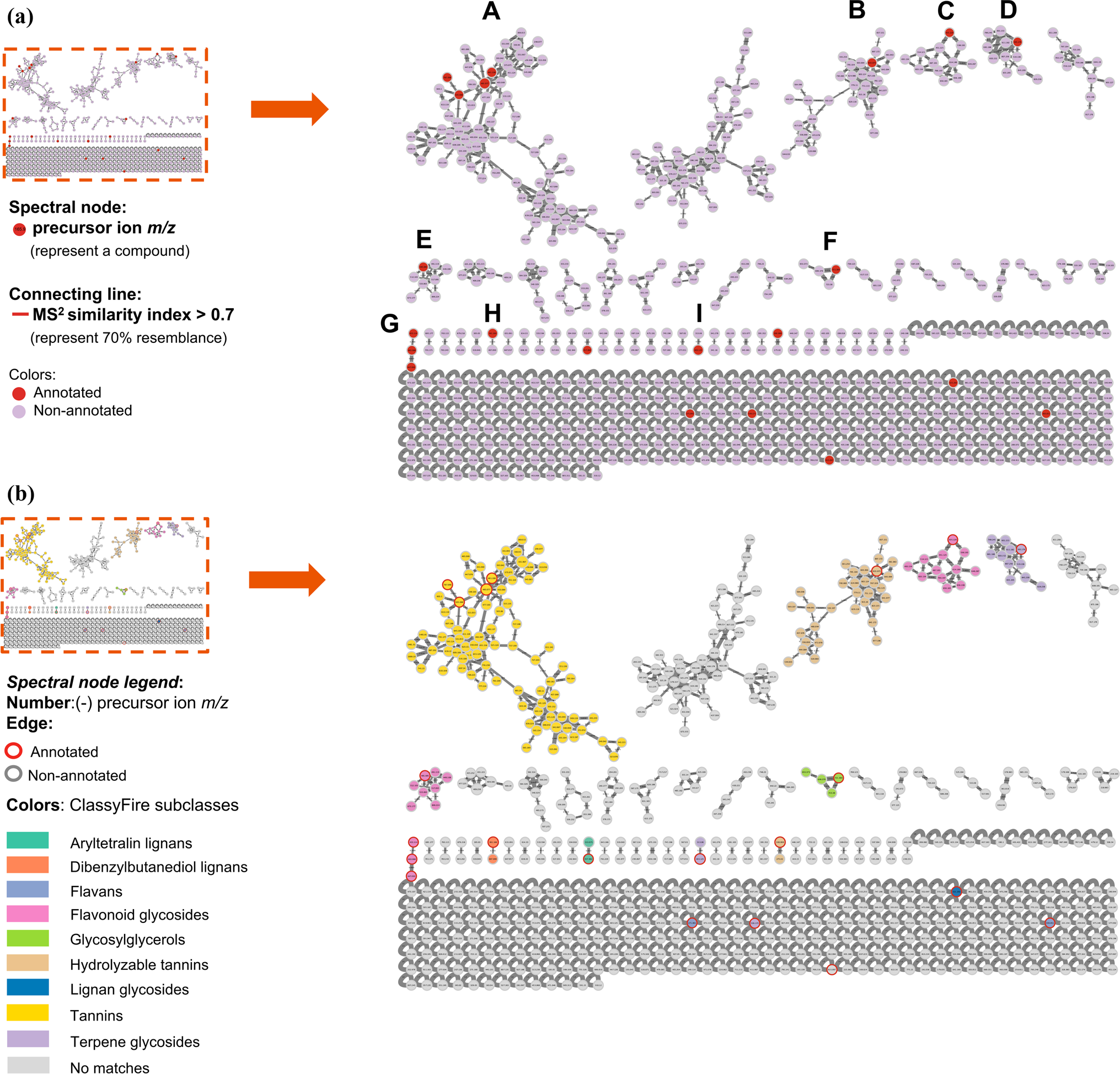

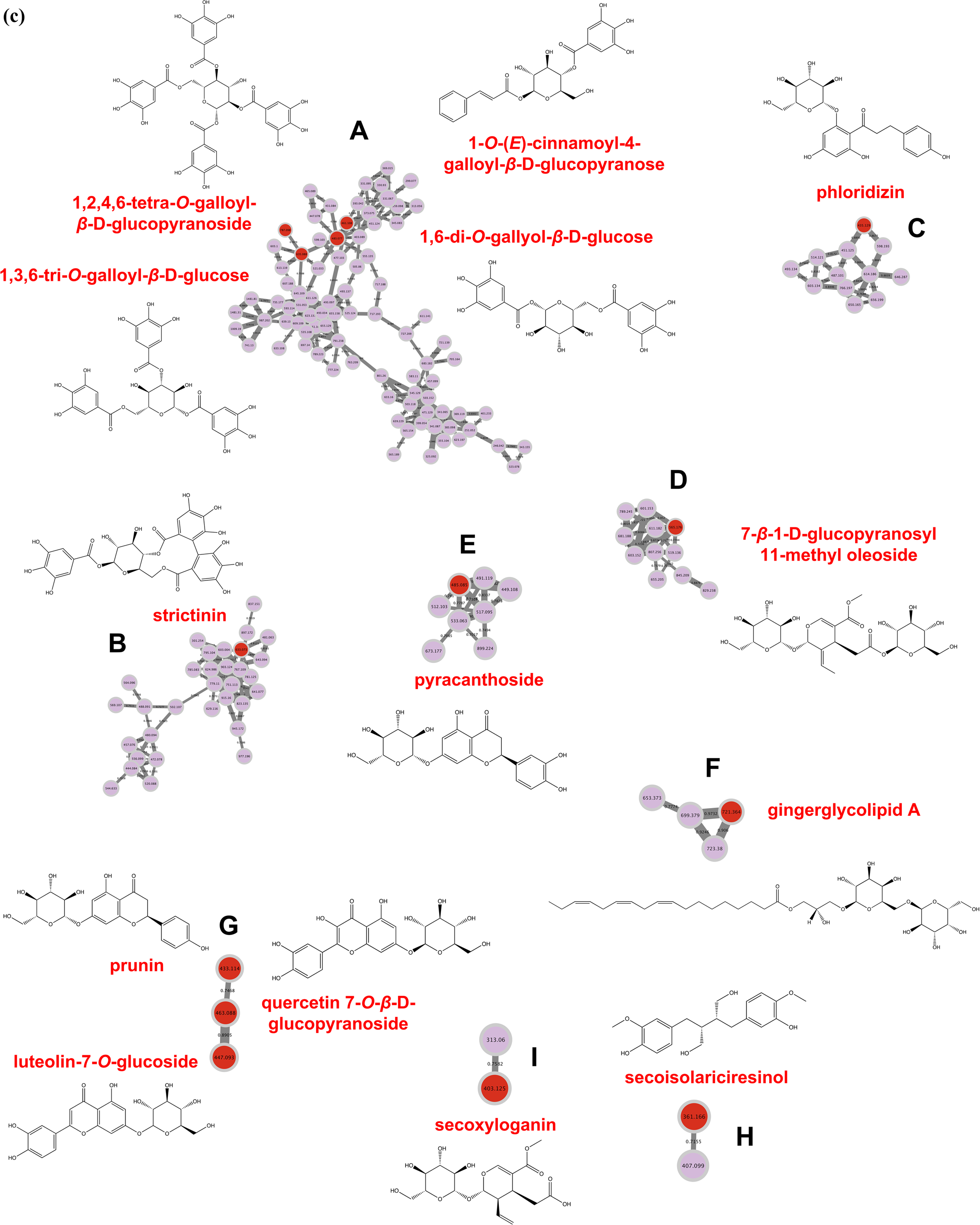

Molecular networks of the ethyl acetate extract of B. tobiracola (a); putative chemical classes of major molecular families (b); and putative annotations of significant representatives (c).
