Fig. 1

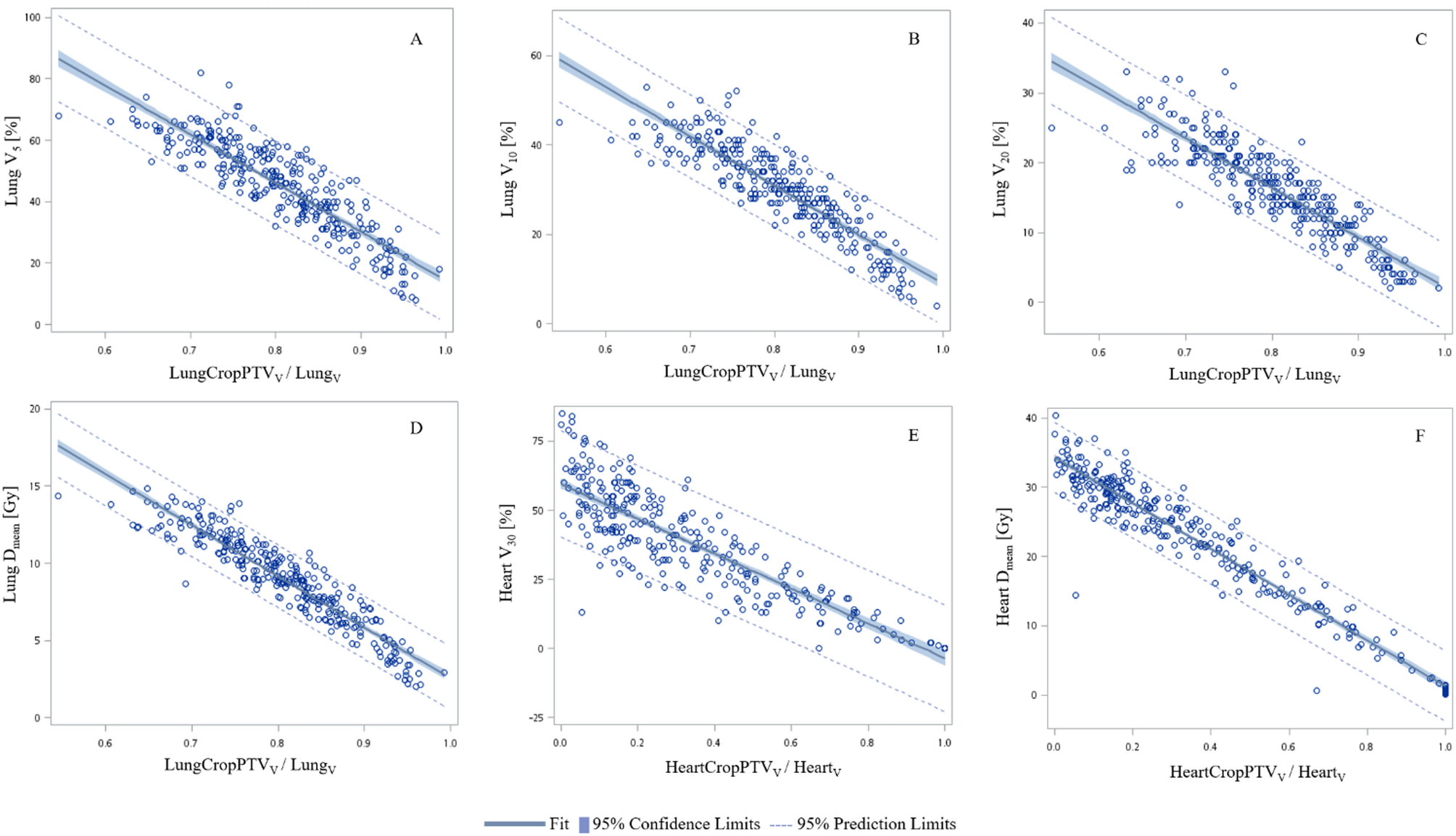

Fitted linear regression curves and scatter plot of the lung and heart. (A) Lung V5, (B) Lung V10, (C) Lung V20, (D) Lung Dmean, (E) Heart V30, (F) Heart Dmean. The 95% prediction limits indicate the range within which can be 95% confident that a new individual data point will fall, given a specific value of the independent variable. For instance, if a patient has a LungCropPTVV/LungV ratio equal to 0.847, the predicted value will fall between 52.4 and 24.9.
