From: Physiological responses of pak choi (Brassica Rapa subsp. Chinensis (L.) Hanelt) to cerium and yttrium in two acidic soils with contrasting textures

Fig. 7

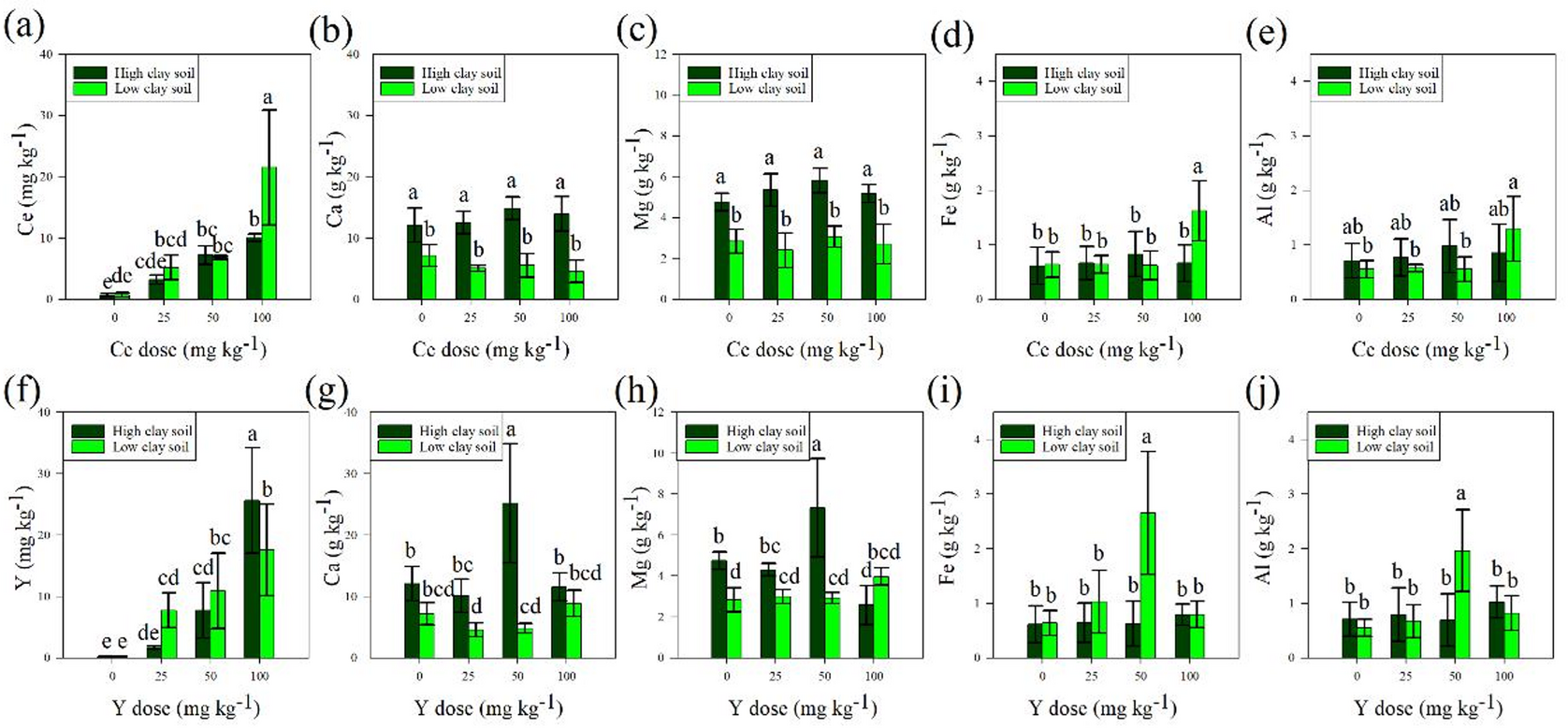

Concentrations of Ce (a), Ca (b), Mg (c), Fe (d), and Al (e) in shoots of the crop with Ce treatment, and concentrations of Y (f), Ca (g), Mg (h), Fe (i), and Al (j) in shoots of the crop with Y treatment in the high clay and low clay soils. Values represent the mean ± standard deviation (n = 4). Different letters are significantly different at 5% level according to least significant difference post hoc test.
