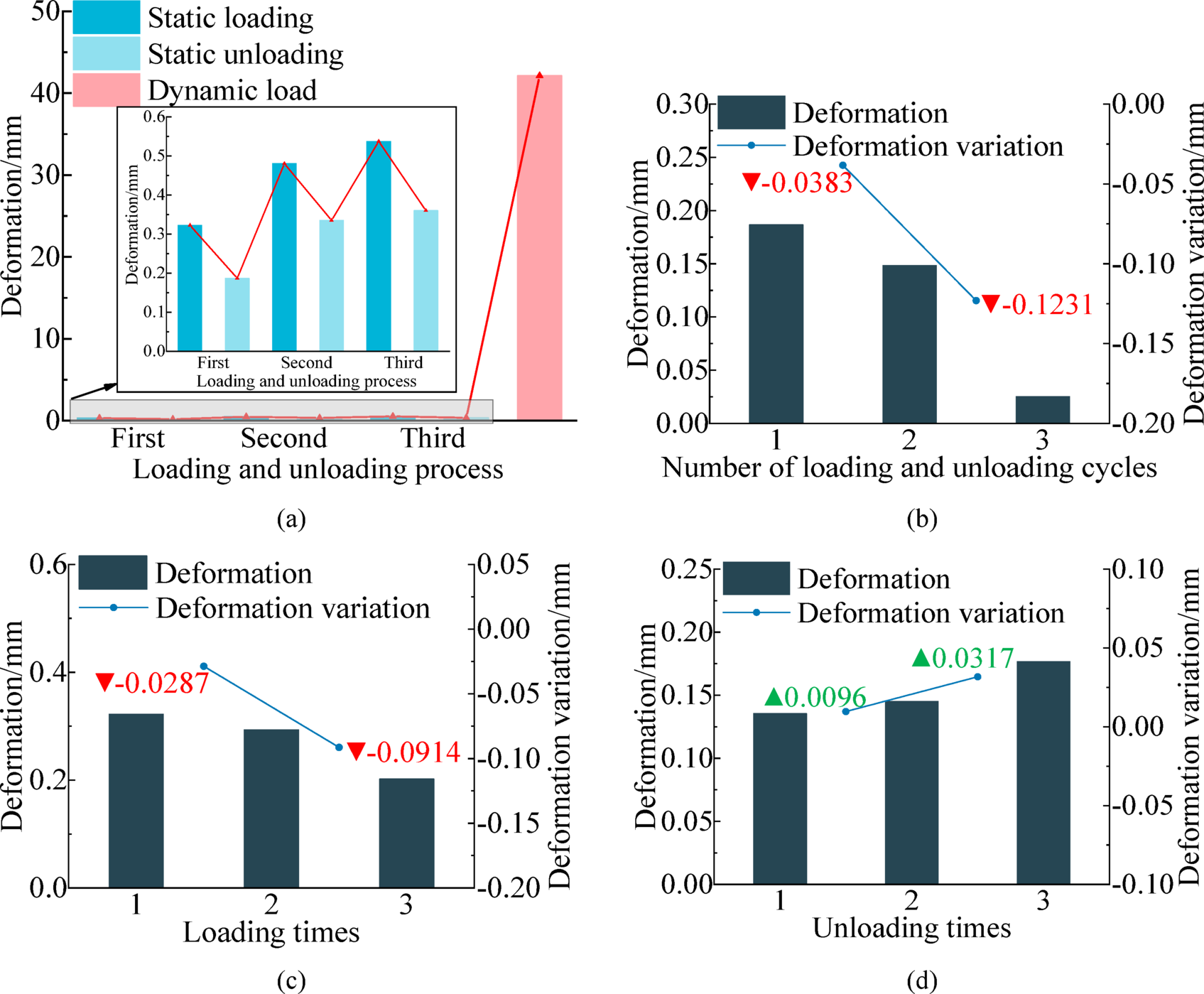

Fig. 10

Deformation of specimen 3 (a) The overall deformation during the test process (b) The deformation during each complete cycle (c) The deformation produced by loading during each cycle (d) The elastic deformation recovery produced by unloading during each cycle.
