Fig. 10 | Scientific Reports

Fig. 10

From: Hedyotis diffusae herba -Scutellaria Barbata herba drug pair suppresses prostate cancer by inducing apoptosis

Fig. 10

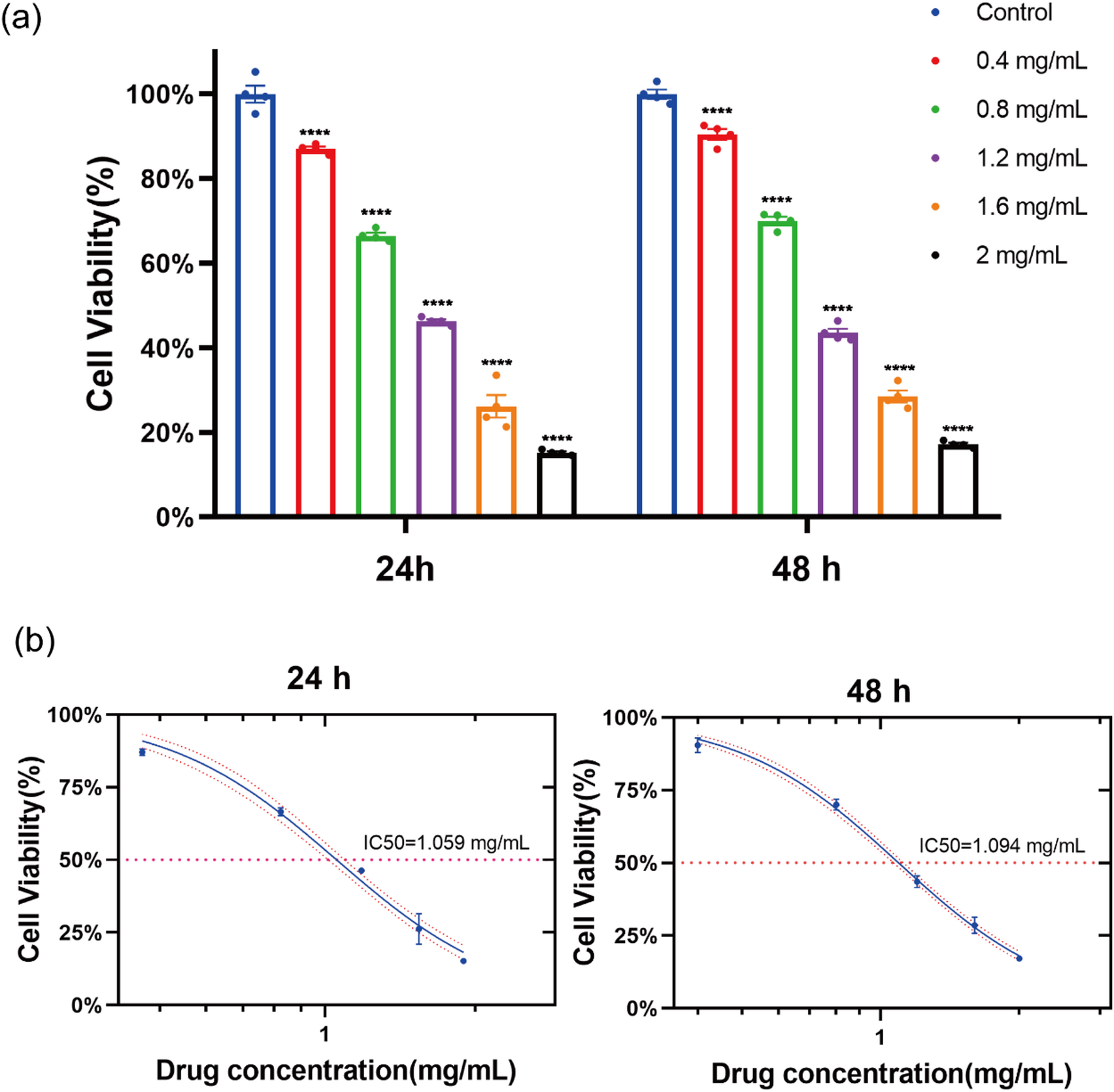

HDH-SBH drug pair inhibited Proliferation in PC-3 cells. (a) Bar chart of viability rate of PC-3 cells treated with different concentrations of HDH-SBH drug pair intervention at two time points (Data are presented as mean ± SD (n = 6) and were analyzed by unpaired two-tailed Student’s t test. Compared with the Control group, ****P<0.0001). (b) The 24-hour and 48-hour half inhibitory concentration of HDH-SBH drug pair on PC-3 cells. (Note: The red horizontal dashed line represents the half inhibitory concentration value, and the red curves represent the 95% confidence interval.).
