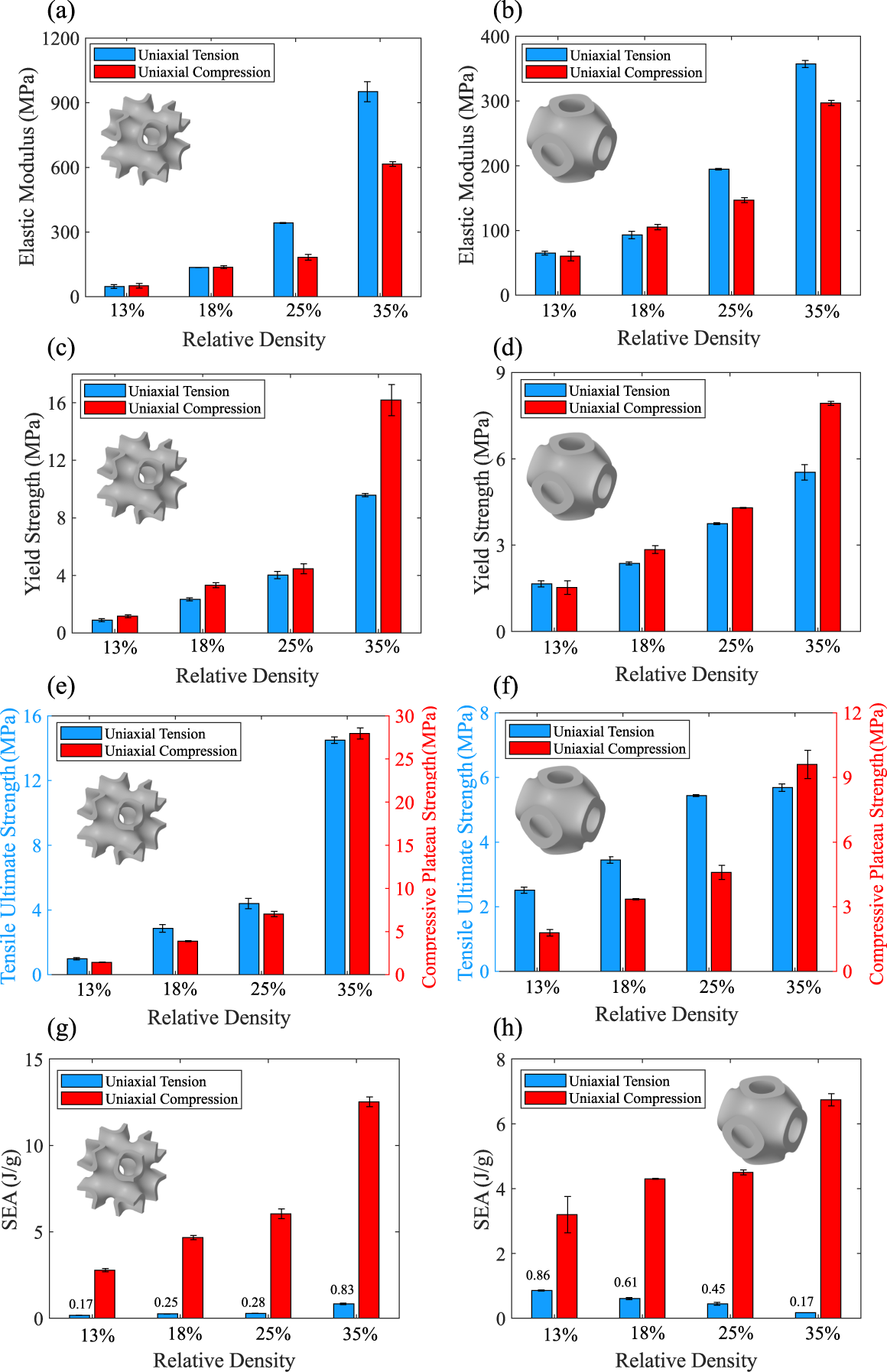

Fig. 11

Elastic modulus of (a) I-WP and (b) Primitive. Yield strength of (c) I-WP and (d) Primitive. Ultimate/plateau strength of (e) I-WP and (f) Primitive. SEA of (g) I-WP and (h) Primitive. The plots include results from tensile (6 × 6 unit cells) and compression specimens (6 × 6 × 6 unit cells) at different relative densities.
