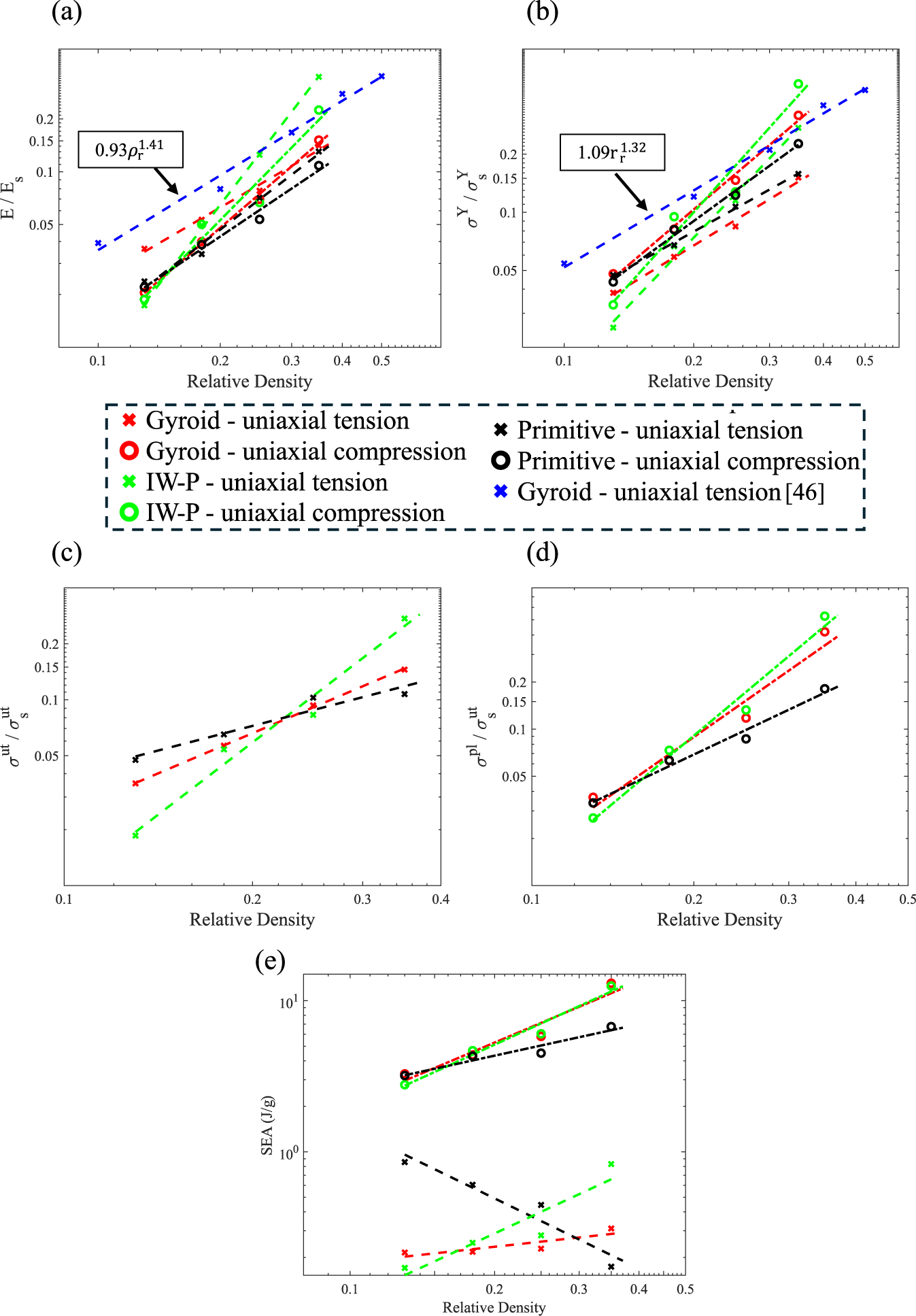

Fig. 12
Scaling power law fits of (a) elastic modulus, (b) yield strength, (c) ultimate strength, (d) plateau strength, and (e) SEA in log-log plots of Gyroid, I-WP, and Primitive sheet-based TPMS lattices. The current study utilizes 6 × 6 unit cells while the literature study46 utilizes 3 × 3 unit cells across the cross-sectional area of the tensile specimens.
