Fig. 3

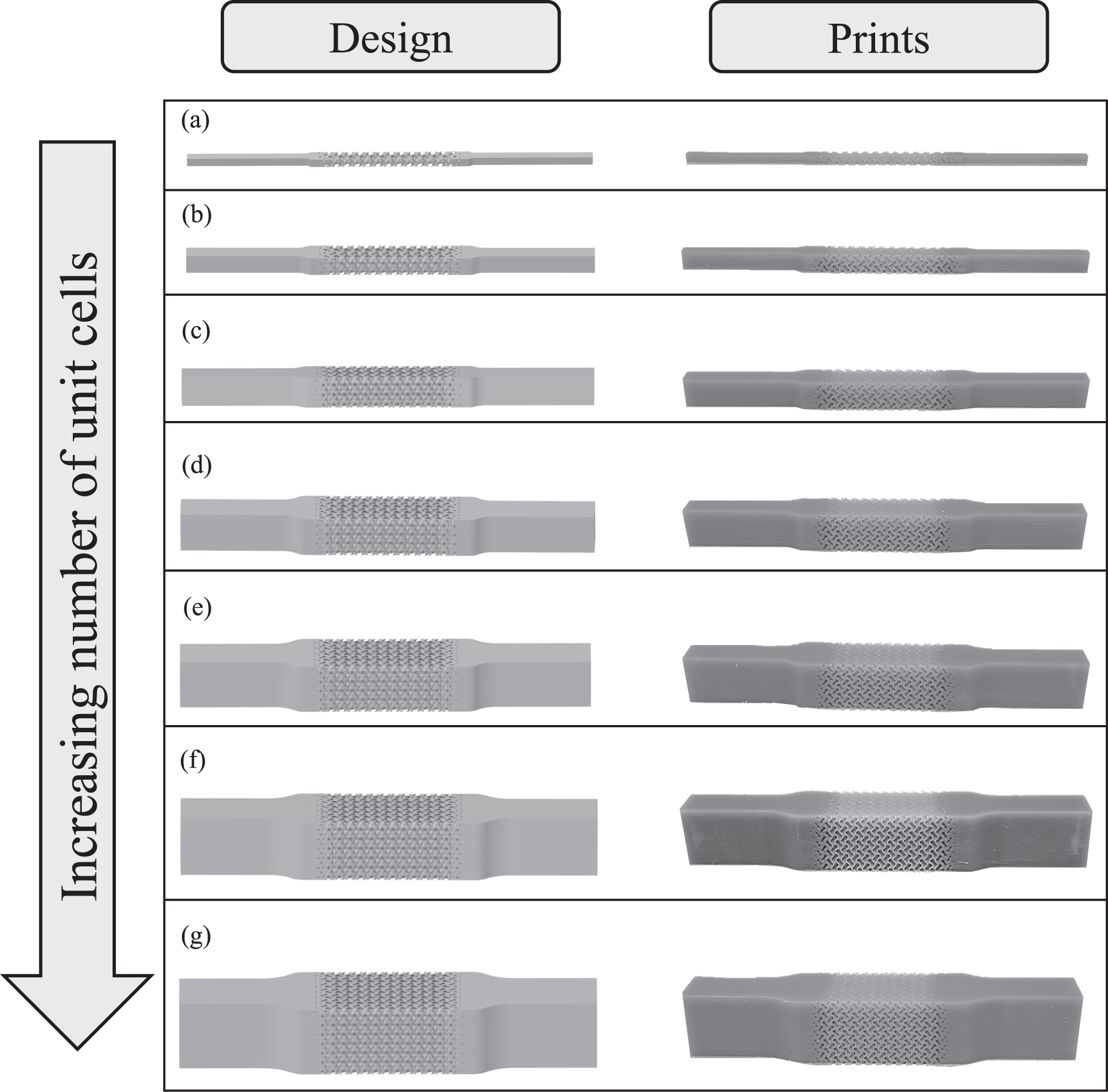

Latticed tensile specimens with Gyroid sheet-based TPMS lattice at 25% relative density with varying number of unit cells. (a) 1 × 1, (b) 2 × 2, (c) 3 × 3, (d) 4 × 4, (e) 5 × 5, (f) 6 × 6, and (g) 7 × 7 unit cells.
Fig. 3 | Scientific Reports
Latticed tensile specimens with Gyroid sheet-based TPMS lattice at 25% relative density with varying number of unit cells. (a) 1 × 1, (b) 2 × 2, (c) 3 × 3, (d) 4 × 4, (e) 5 × 5, (f) 6 × 6, and (g) 7 × 7 unit cells.
