Fig. 4

From: Tensile properties of sheet-based triply periodic minimal surface lattices fabricated using vat polymerization

Fig. 4

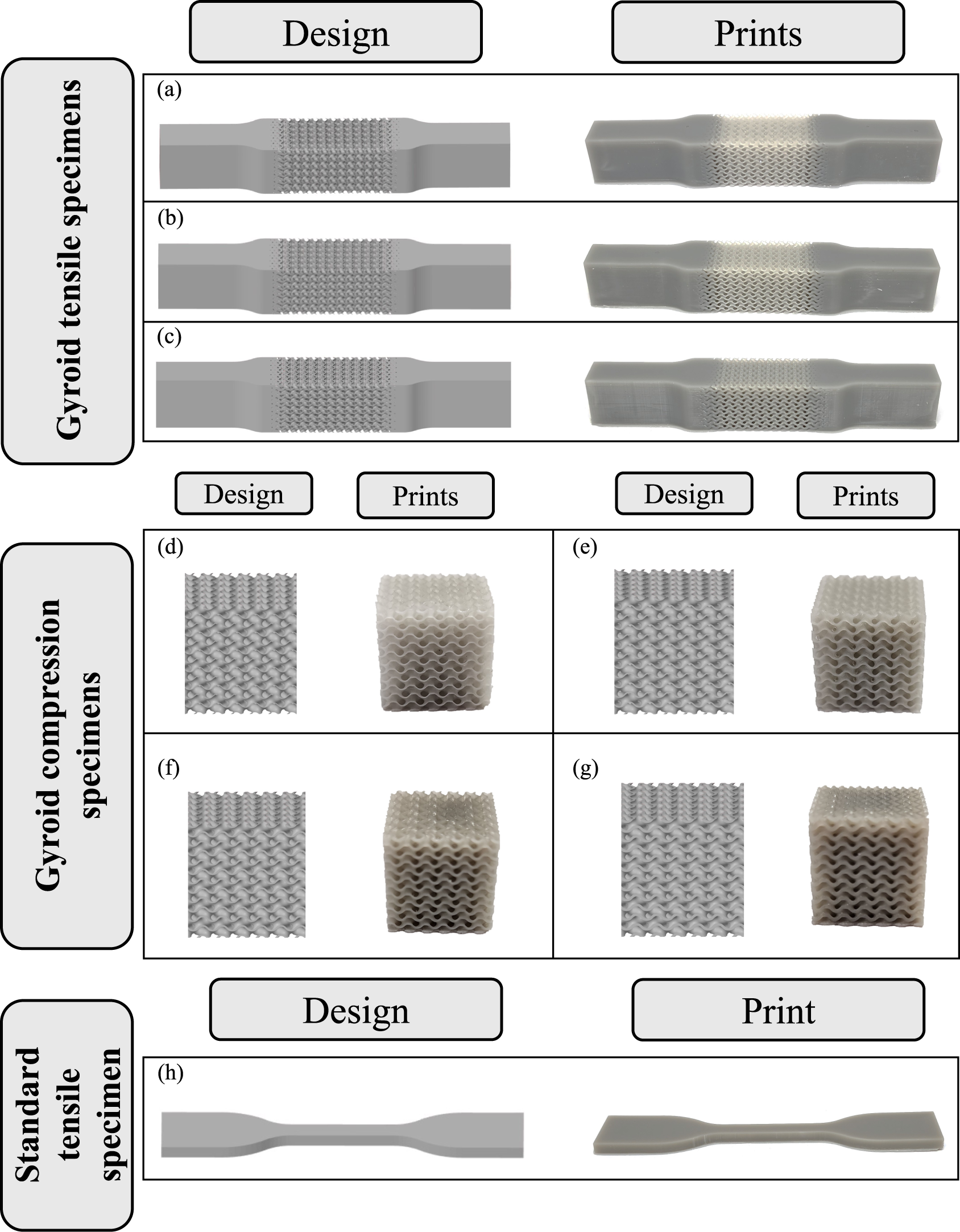

Latticed tensile samples with 6 × 6 unit cells (along the cross sectional area) of Gyroid sheet-based TPMS lattice at (a) 13%, (b) 18%, and (c) 35% relative densities. Cubic compression samples with 6 × 6 × 6 unit cells of Gyroid sheet-based TPMS lattice at (d) 13%, (e) 18%, (f) 25%, and (g) 35% relative densities. (h) Standard tensile sample. In all subfigures, the left column presents the STL designs while the right column presents the actual printed specimens.
