Fig. 5
From: Enhancing the yield of bucket brigade quantum random access memory using redundancy repair

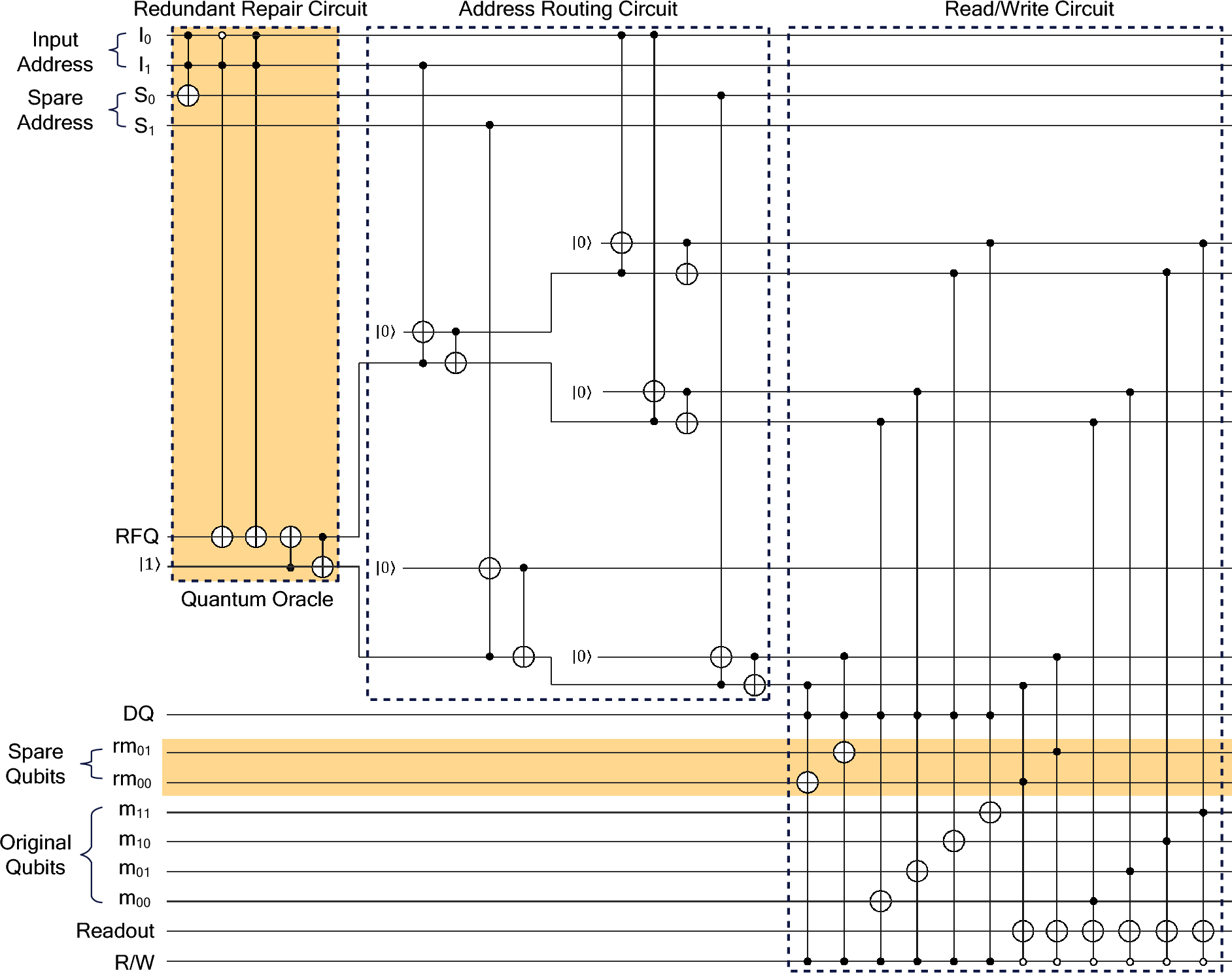

Quantum circuit example of the proposed qRAM consisting of redundancy recovery circuit, address routing circuit, read/write circuit, and memory cell. This circuit is an example of an input address represented by two logical qubits. Parts highlighted with a yellow background are essential to support redundant repair schemes.
