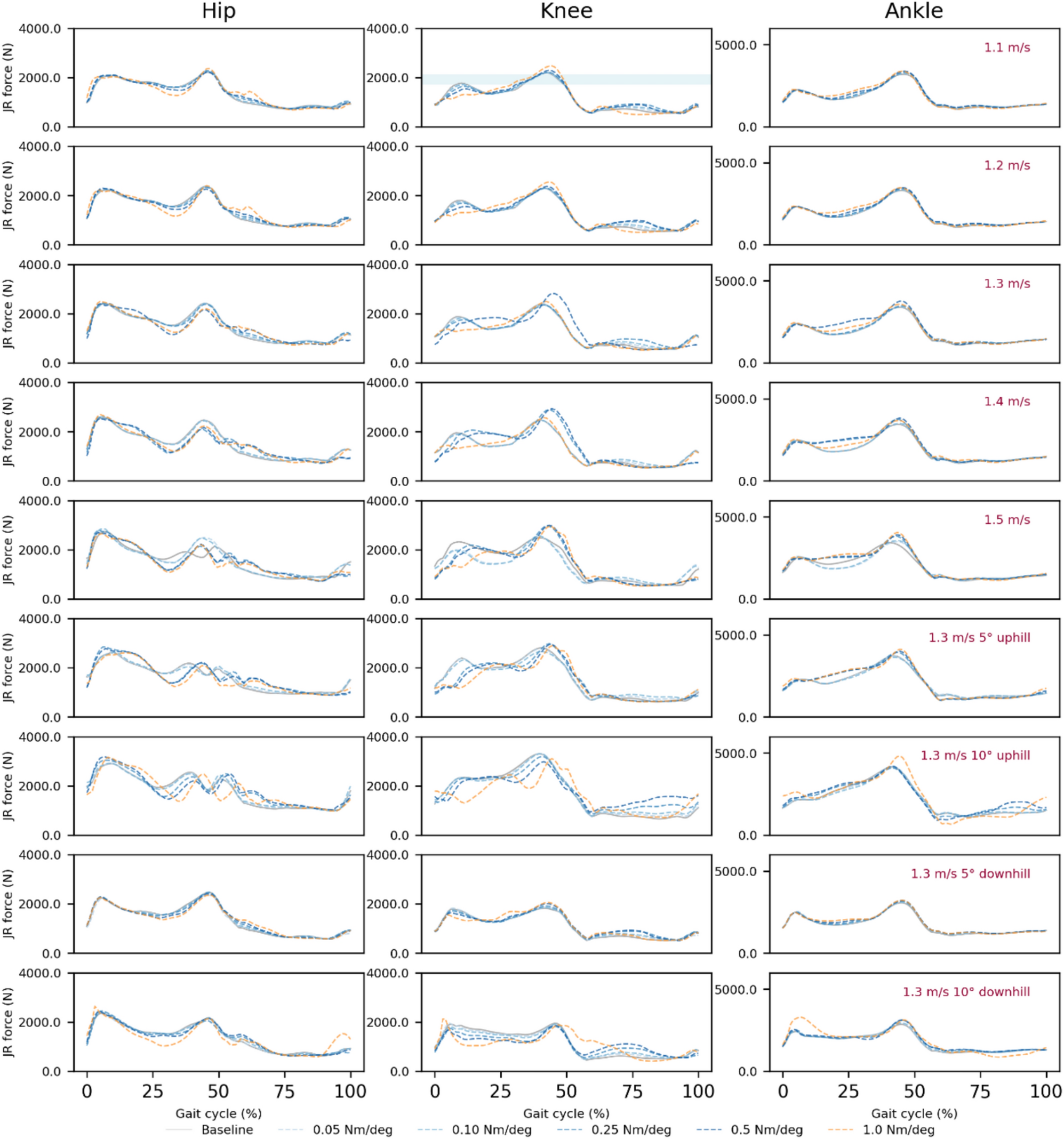

Figure. 7.
Vertical joint reaction (JR) force of various walking conditions with different knee brace stiffness predicted by primary model. The light blue horizontal band represents the range of peak in vivo knee joint reaction forces over a gait cycle, as reported in the datasets34 for a subject with height, body mass, and walking speed comparable to those of the model used in this study.
