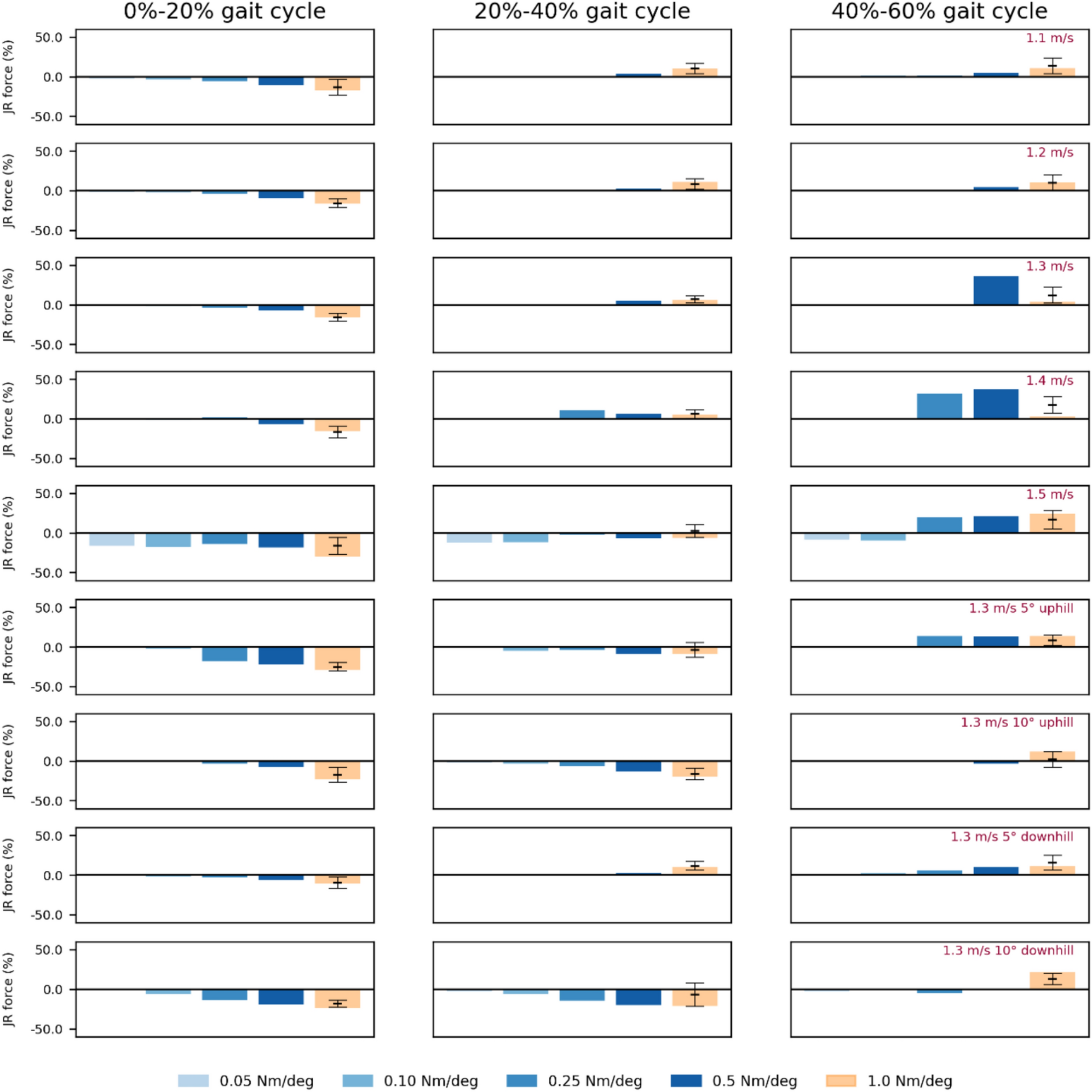

Figure. 8.

Averaged vertical joint reaction (JR) force percentage change relative to baseline of knee joint in stance phase (0–60% gait cycle). Bars show the predictions of the primary model. Horizontal markers and lines denote mean ± standard deviation predicted by additional models under brace stiffness of 1.0 Nm/deg.
