Fig. 11

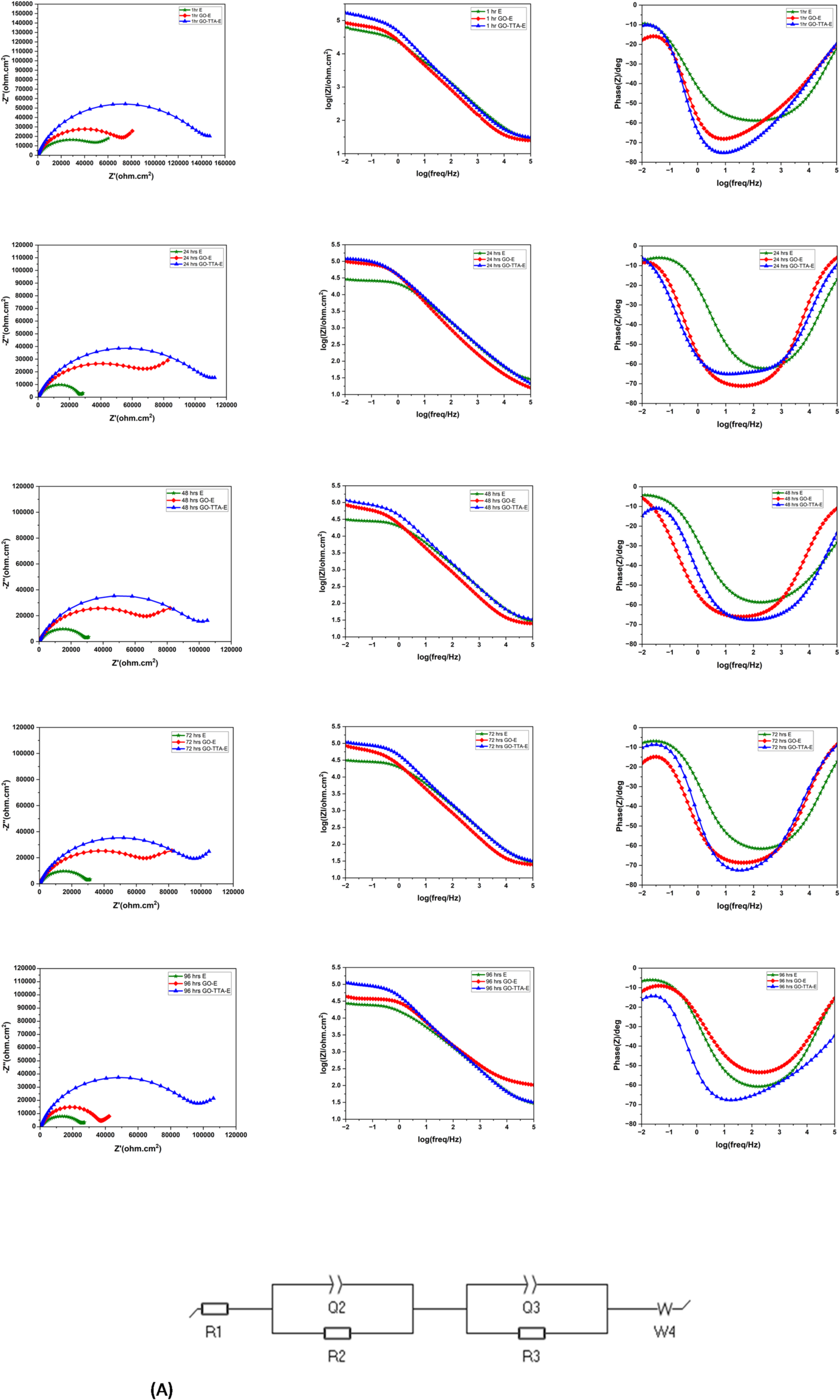

Nyquist, bode and phase angle diagram of epoxy coating, GO-epoxy coatings, GO-TTA-Epoxy coatings, immersed in 3.5% NaCl solution, the experimental and fitted data are shown in the forms of markers and lines, respectively and equivalent circuit (A) used for fitting the data.
