From: Experimental study on fracture and fragmentation characteristics of laminated rocks under impact loading

Fig. 8

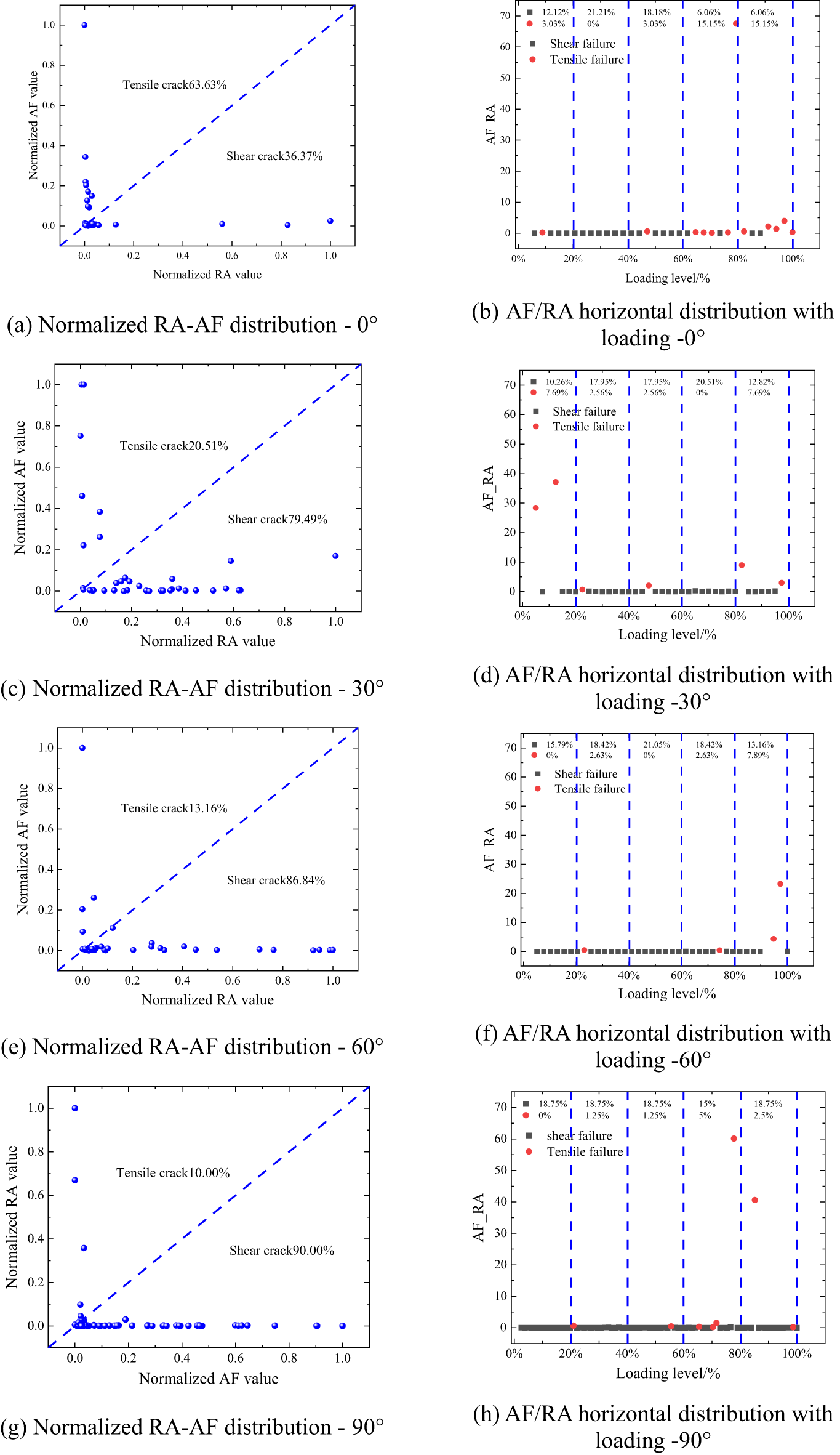

Normalized RA-AF and AF/RA distributions of laminated rocks. (a) Normalized RA-AF distribution − 0°, (b) AF/RA horizontal distribution with loading − 0°, (c) Normalized RA-AF distribution − 30°, (d) AF/RA horizontal distribution with loading − 30°, (e) Normalized RA-AF distribution − 60°, (f) AF/RA horizontal distribution with loading − 60°, (g) Normalized RA-AF distribution − 90°, (h) AF/RA horizontal distribution with loading − 90°.
