Fig. 3
From: Impact of exam stress and time of day on hand grip fatigue in medical students

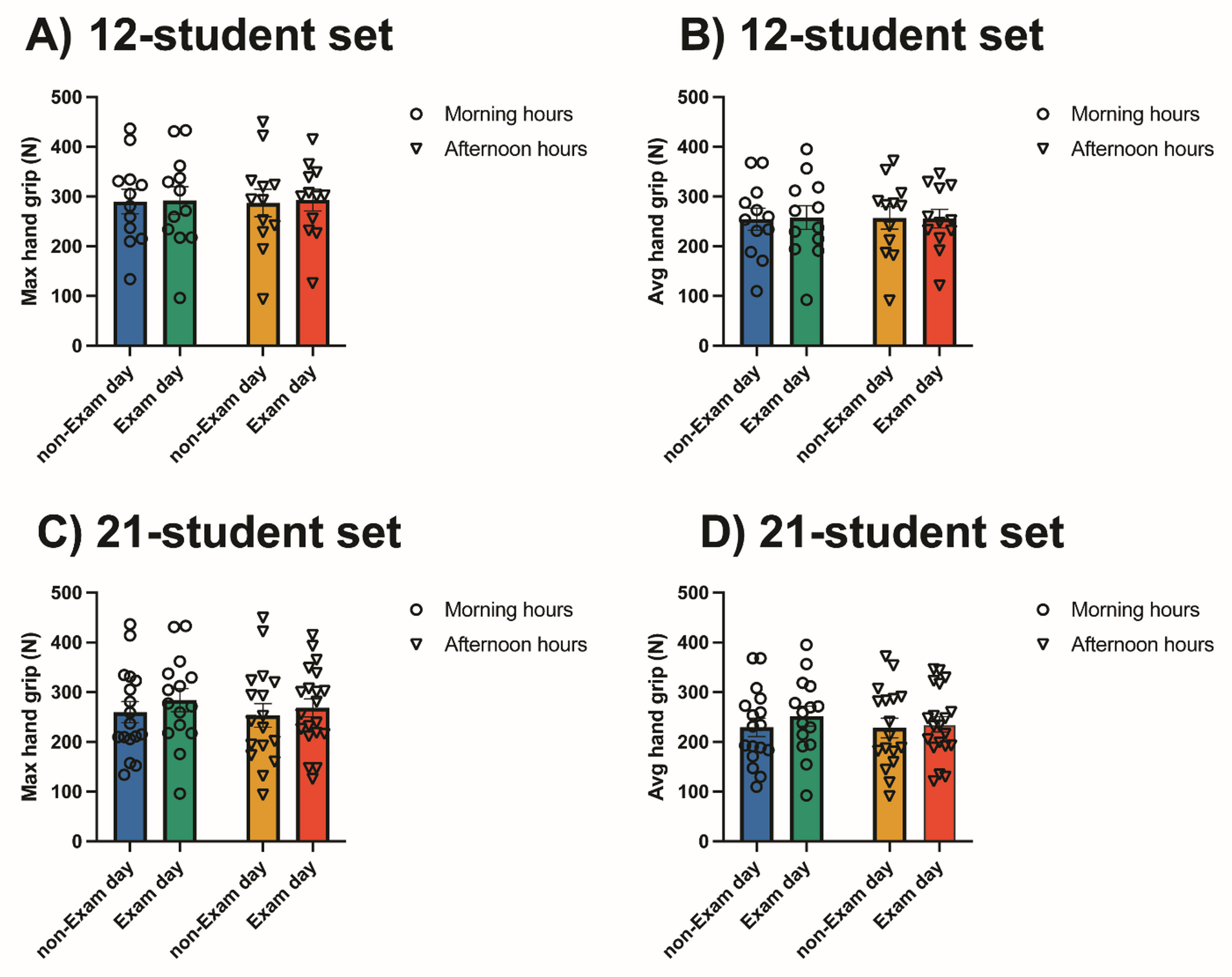

Bar graphs of maximal hand grip force, including different subsets of students who participated in the study. This graph displays the statistical comparison between the student’s hand force calculated in 4 different ways: (A) only the 12 students who completed the 4 data point measurements are included, and the single highest maximum point of 3 hand grips trial measurements is taken in this comparison (n = 12, time of the day p = 0.9817, stress/exam levels p = 0.5634, 2-way ANOVA, GraphPad Prism); (B) only the 12 students who completed the 4 data point measurements are included, and an average of the highest maximum point of 3 hand grips trial measurements is taken in this comparison (n = 12, time of the day p = 0.9914, stress/exam levels p = 0.8812, 2-way ANOVA, GraphPad Prism); (C) all 21 students are included, and the single highest maximum point of 3 hand grips trial measurements is taken in this comparison (n = 21, time of the day p = 0.9948, stress/exam levels p = 0.3130, 2-way ANOVA, GraphPad Prism) and (D) all 21 students are included, and an average of the highest maximum point of 3 hand grips trial measurements is taken in this comparison n (n = 21, time of the day p = 0.9752, stress/exam levels p = 0.6785, 2-way ANOVA, GraphPad Prism). The y-axis displays the single maximum (Max) or the average of 3 trials (Avg) in Newtons, and the x-axis displays the time of day and stress level of the day. Each circle and triangle represents an individual data point plotted.
