Fig. 8
From: Fuzzy logic-based reactive power control for power factor enhancement in EV drives

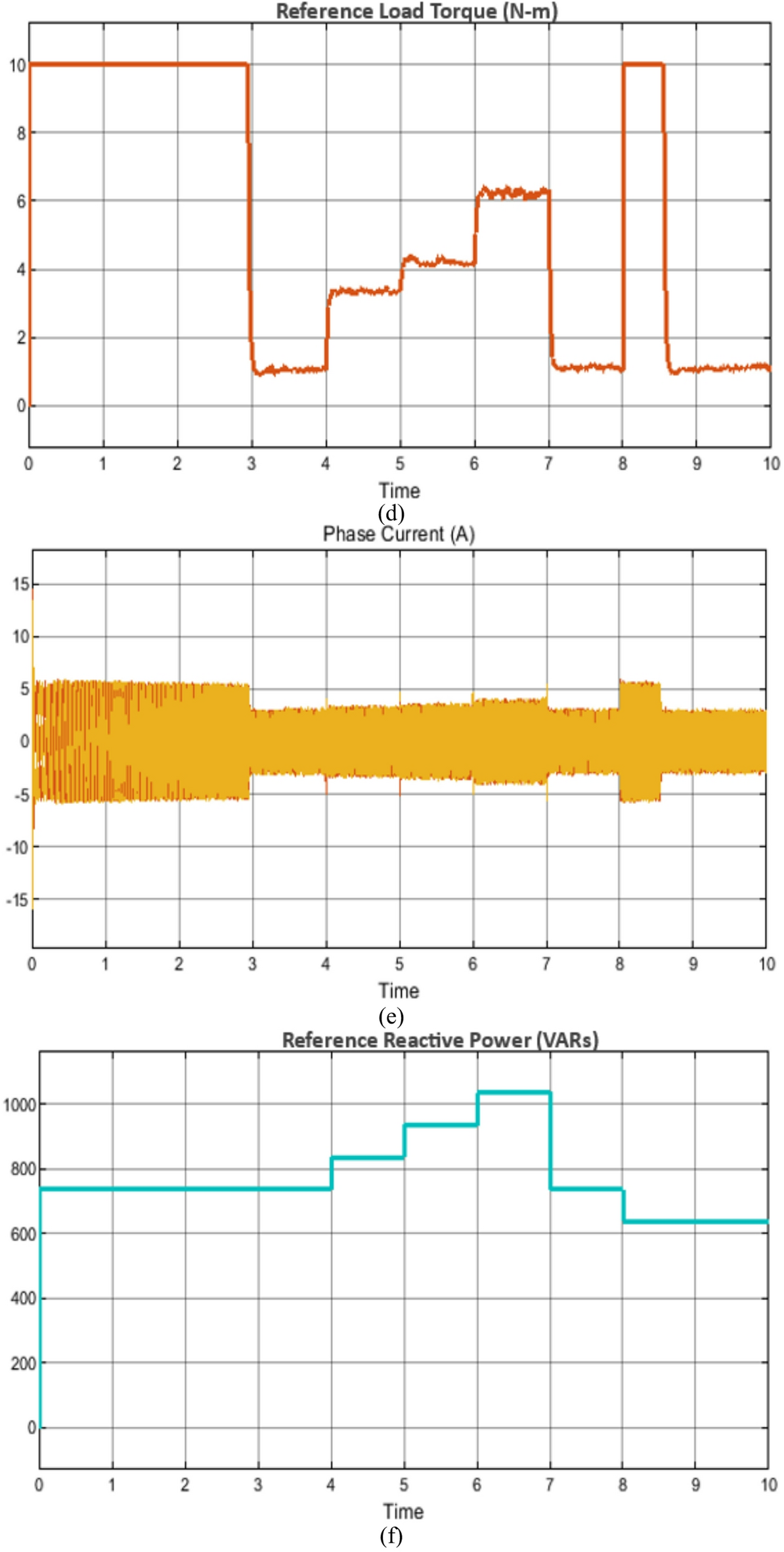

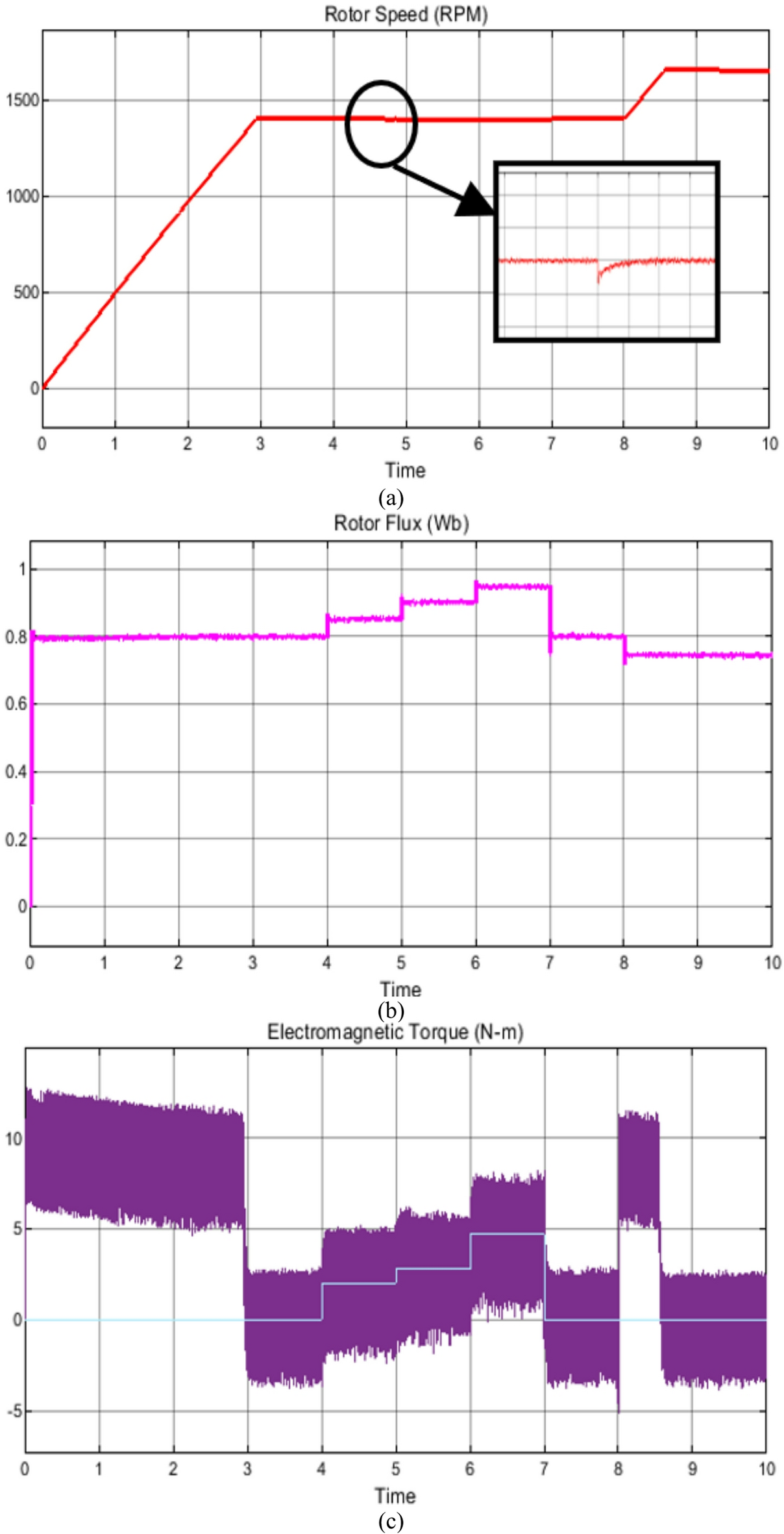

Simulation results of the proposed control technique under wide range of operating conditions (a) rotor speed, (b) rotor flux, (c) Electromagnetic torque, (d) Reference load torque, (e) Phase current and (f) reference reactive power.
