Fig. 5

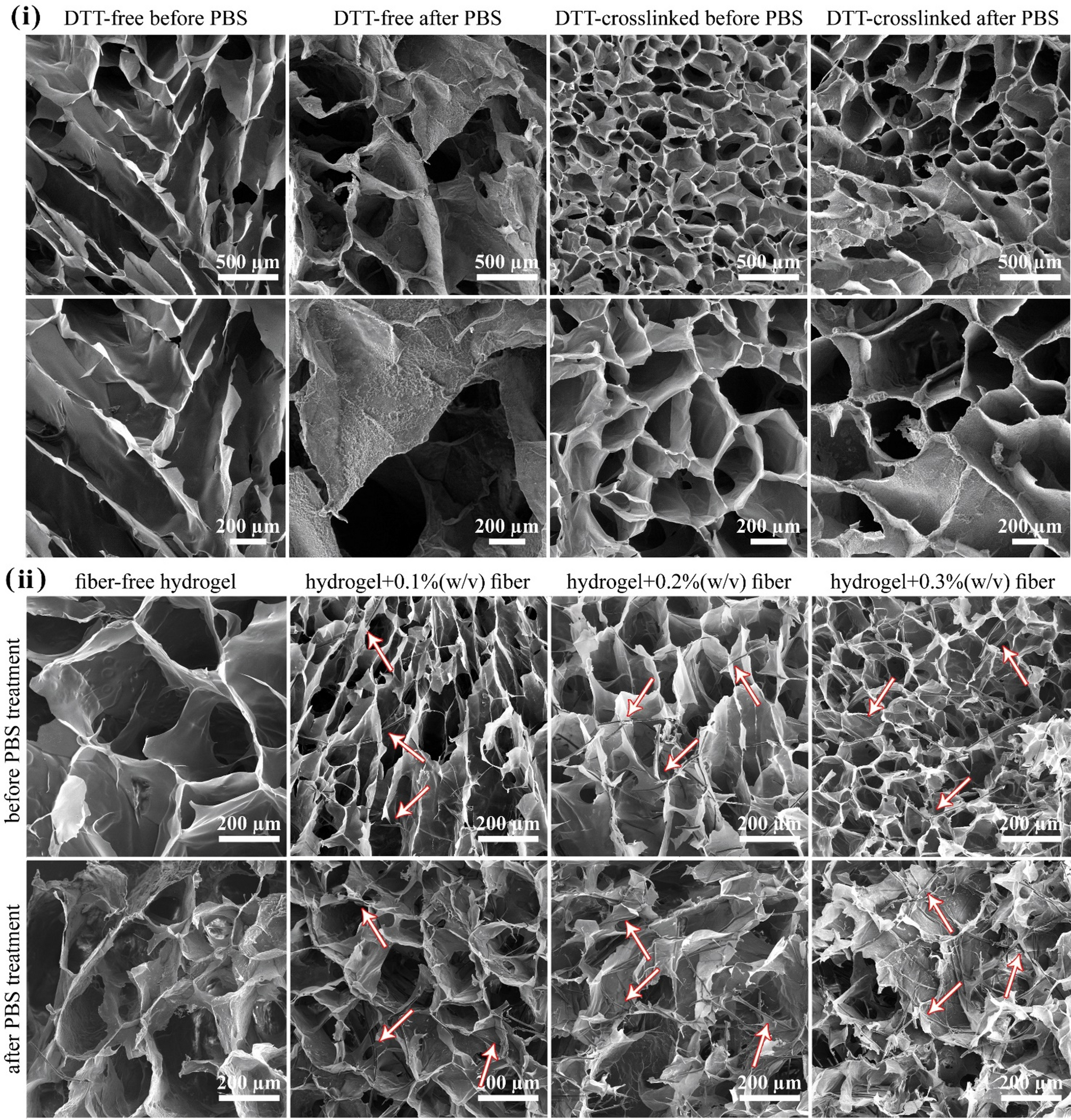

(i) SEM micrographs of fiber-free hydrogel scaffolds with and without DTT as crosslinker and simultaneous investigation of the effect of environmental ions on the structure by putting the scaffolds in PBS. (ii) SEM images of hydrogel scaffold before and after placing in PBS.
