Fig. 15
From: Effect of die fillet radius on tube thinning in free bending

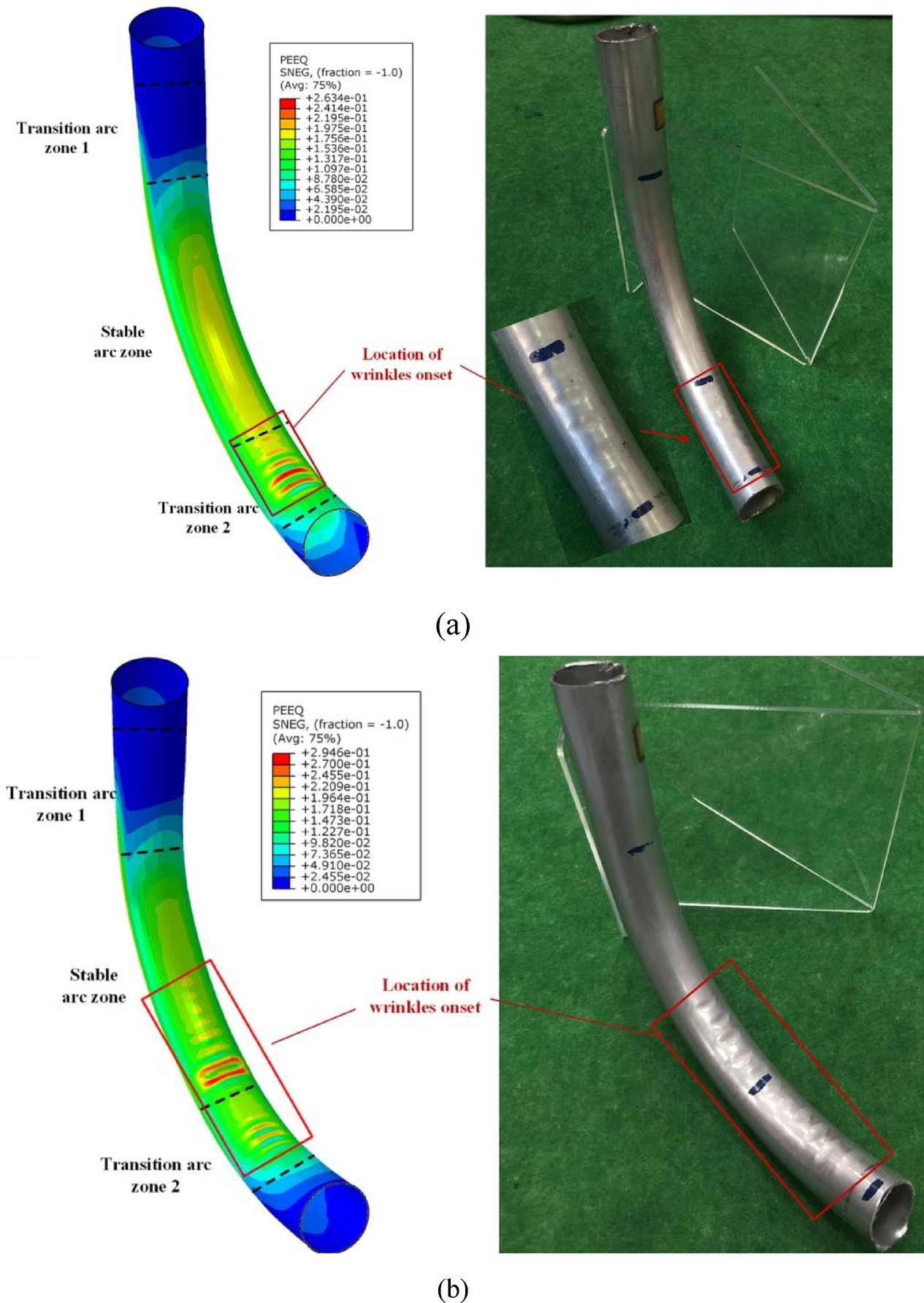

Image of wrinkles on the inner side of the pipe29: (a) wrinkled pipes with eccentricity of 14 mm, (b) wrinkled pipes with eccentricity of 14.5 mm.
Fig. 15 | Scientific Reports
