Fig. 3
From: Multimodal skin care system using combined image and impedance-based diagnostics

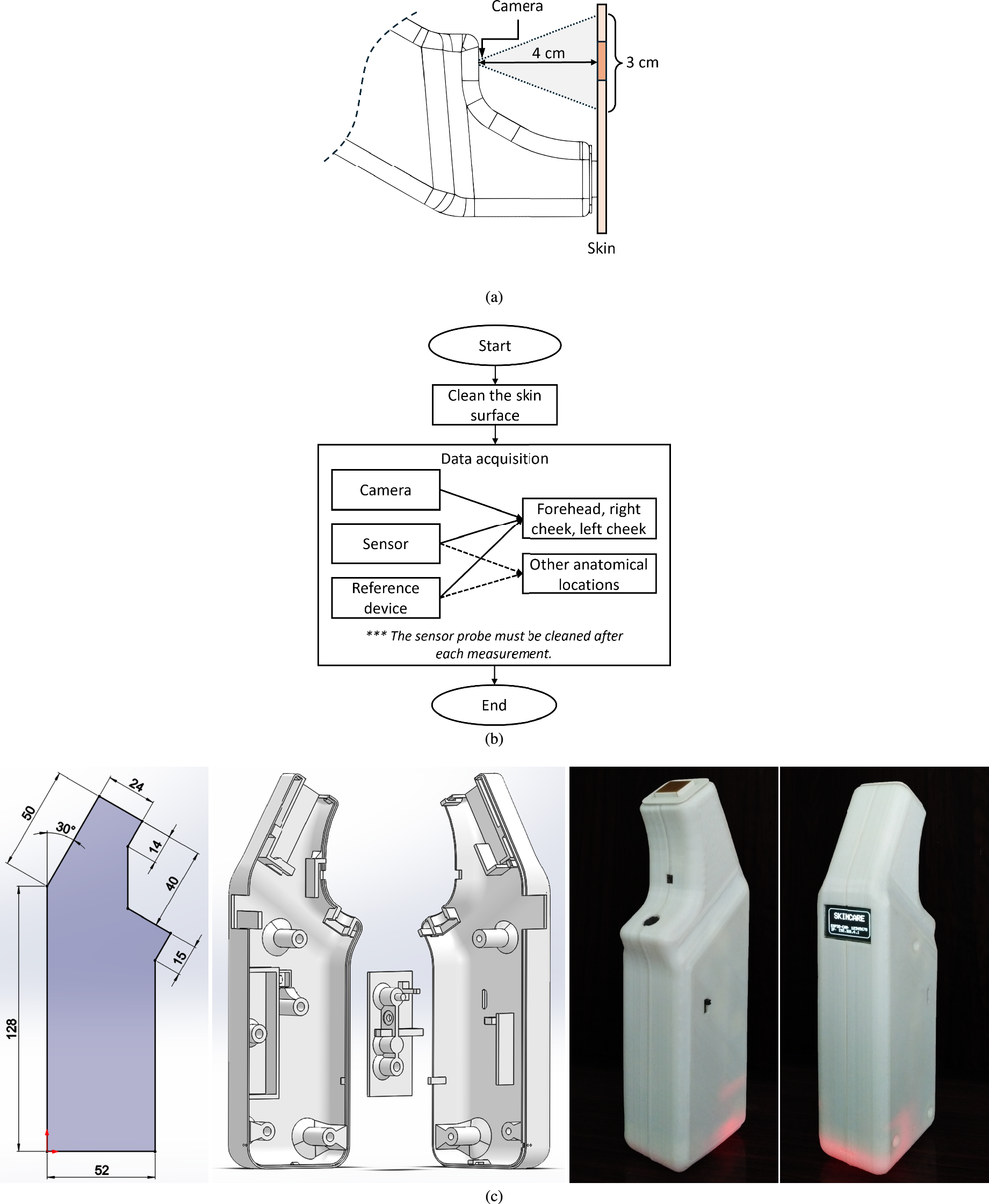

Device design and experimental setup: (a) experimental setup for skin monitoring, (b) measurement protocol, and (c) 3D model design with the complete custom prototype. Dimensions are shown in millimeters (mm).
