Fig. 6
From: Three-dimensional large eddy simulation of hydrodynamics in multi-pier tandem bridge systems

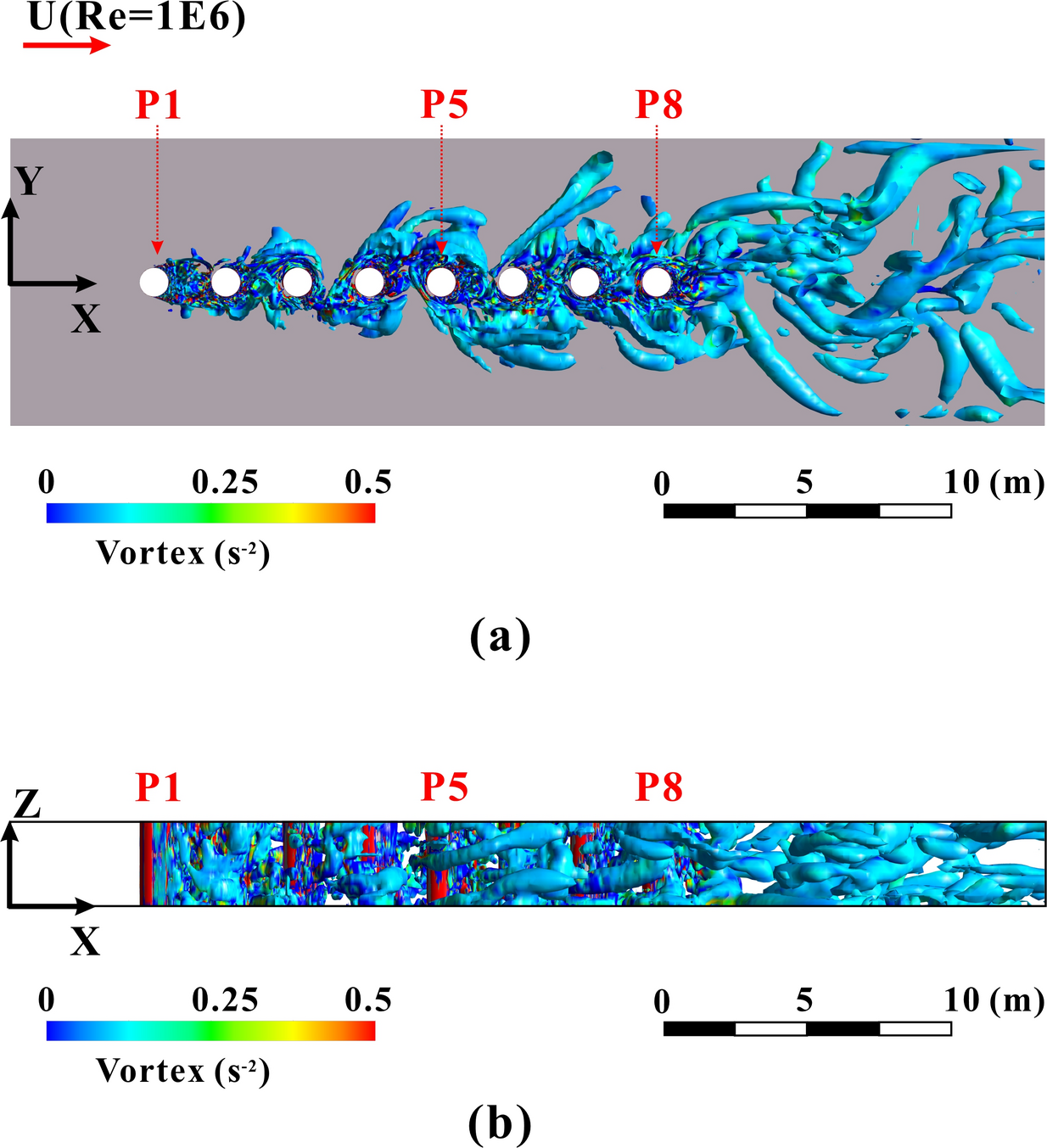

Vortex distribution of eight tandem bridge piers at 50 s: (a) XY plane; (b) XZ vertical section.
