From: Loss of the liver circadian clock affects the expression of intrarenal renin-angiotensin system components

Fig. 3The alternative text for this image may have been generated using AI.

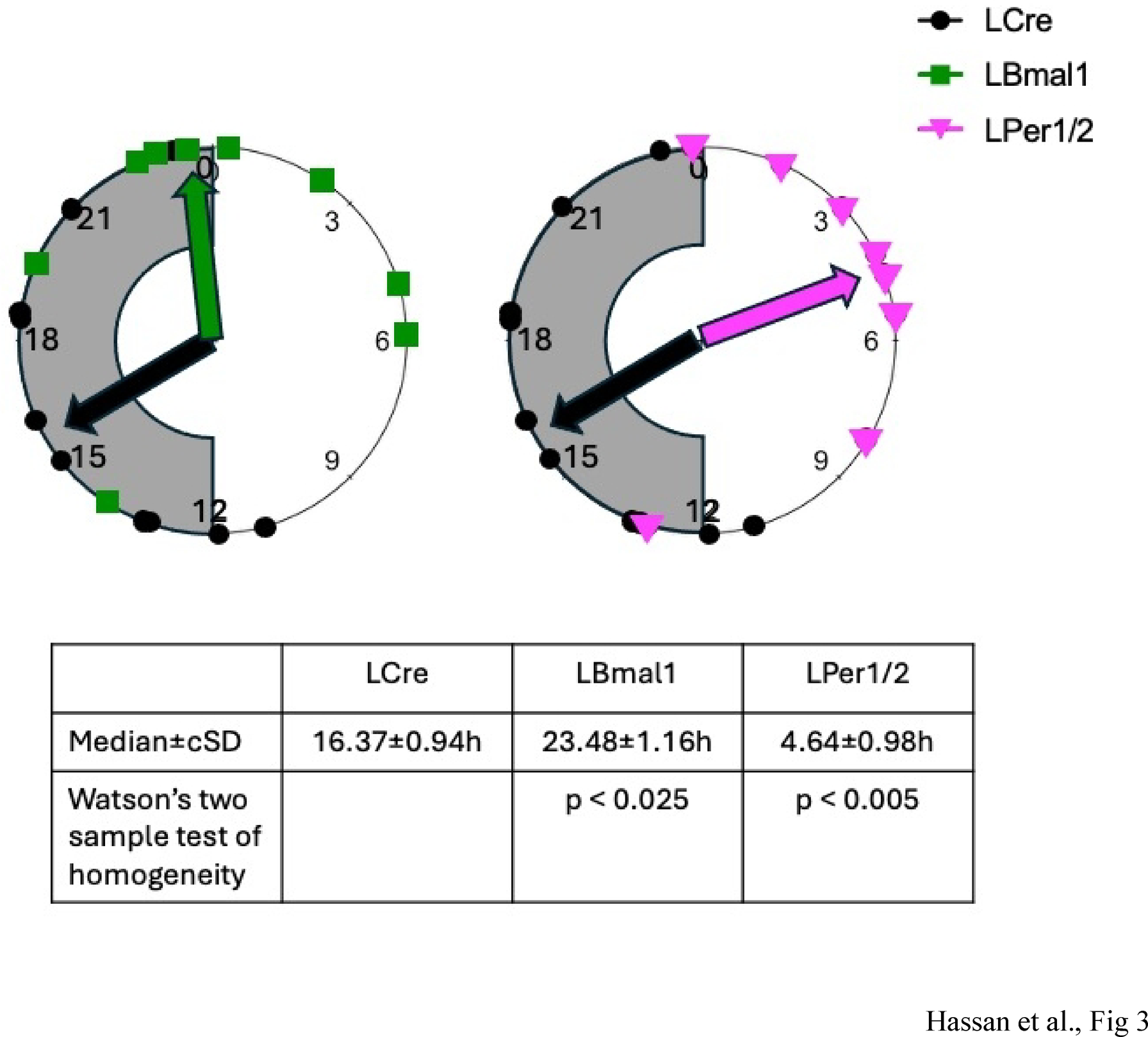

Analysis of the median phase differences for kidney genes in the different genotypes. Left side: Plot of the calculated phases from Supplemental table S1 on a 24 h circle for LCre (black dots) and LBmal1 (green squares) mice. Right side: Plot of the calculated phases from Supplemental table S1 on a 24 h circle for LCre (black dots) and LPer1/2 (magenta triangles) mice. Bottom: calculation of the median phase of gene expression ± circular standard deviation in hours; Watson’s two sample test of homogeneity comparing LCre with LBmal1, or LCre with LPer1/2.
