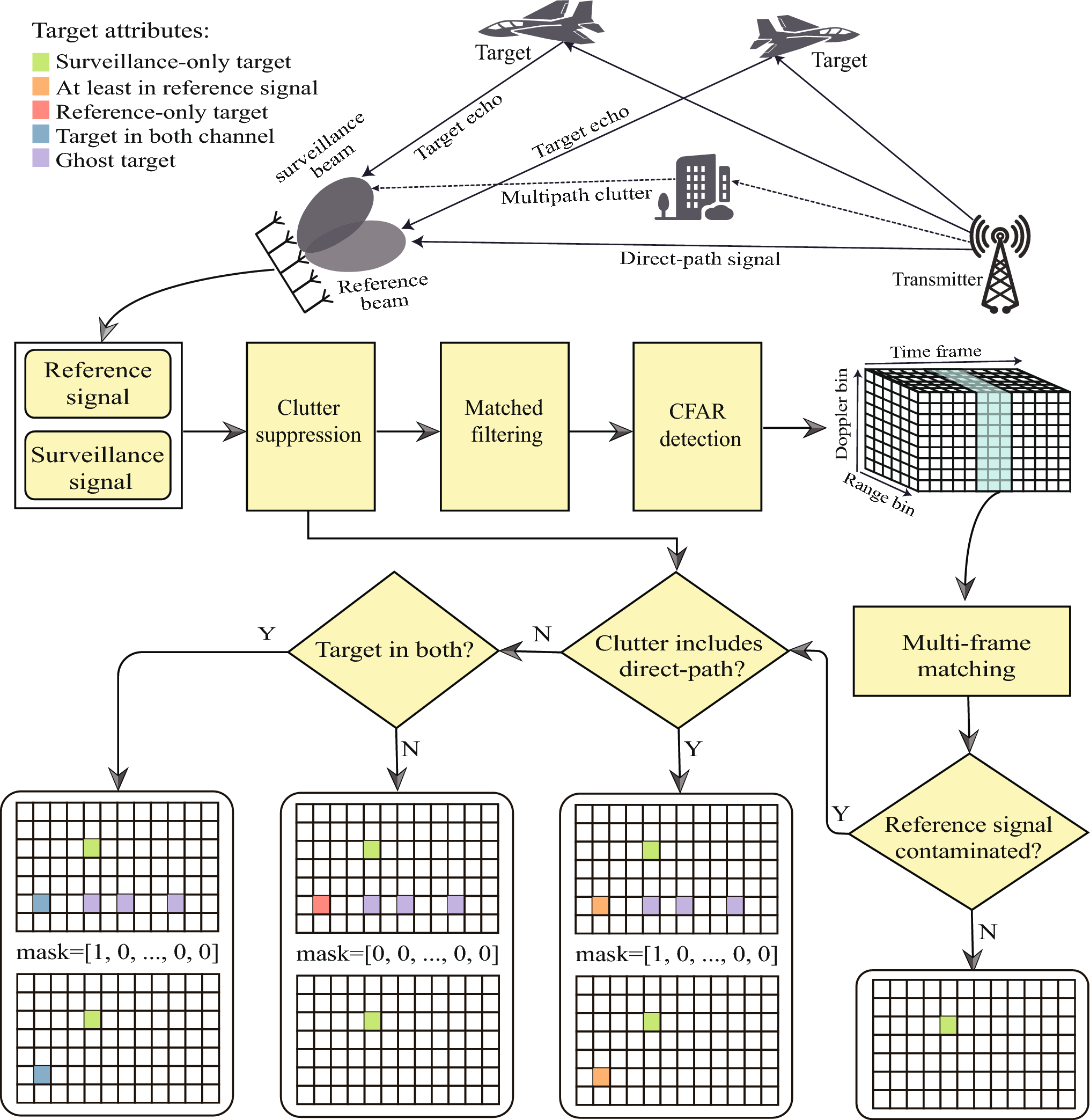

Fig. 1
From: Ghost peaks mitigation with target-contaminated reference signal in passive bistatic radar
Overall flow of the proposed ghost peaks mitigation method. The pipeline includes signal acquisition, clutter suppression via ECA, matched filtering, CFAR detection, and multi-frame matching. The bottom part illustrates the decision logic and masking strategies used to suppress ghost peaks while preserving true target detections.
