Fig. 3
From: Ghost peaks mitigation with target-contaminated reference signal in passive bistatic radar

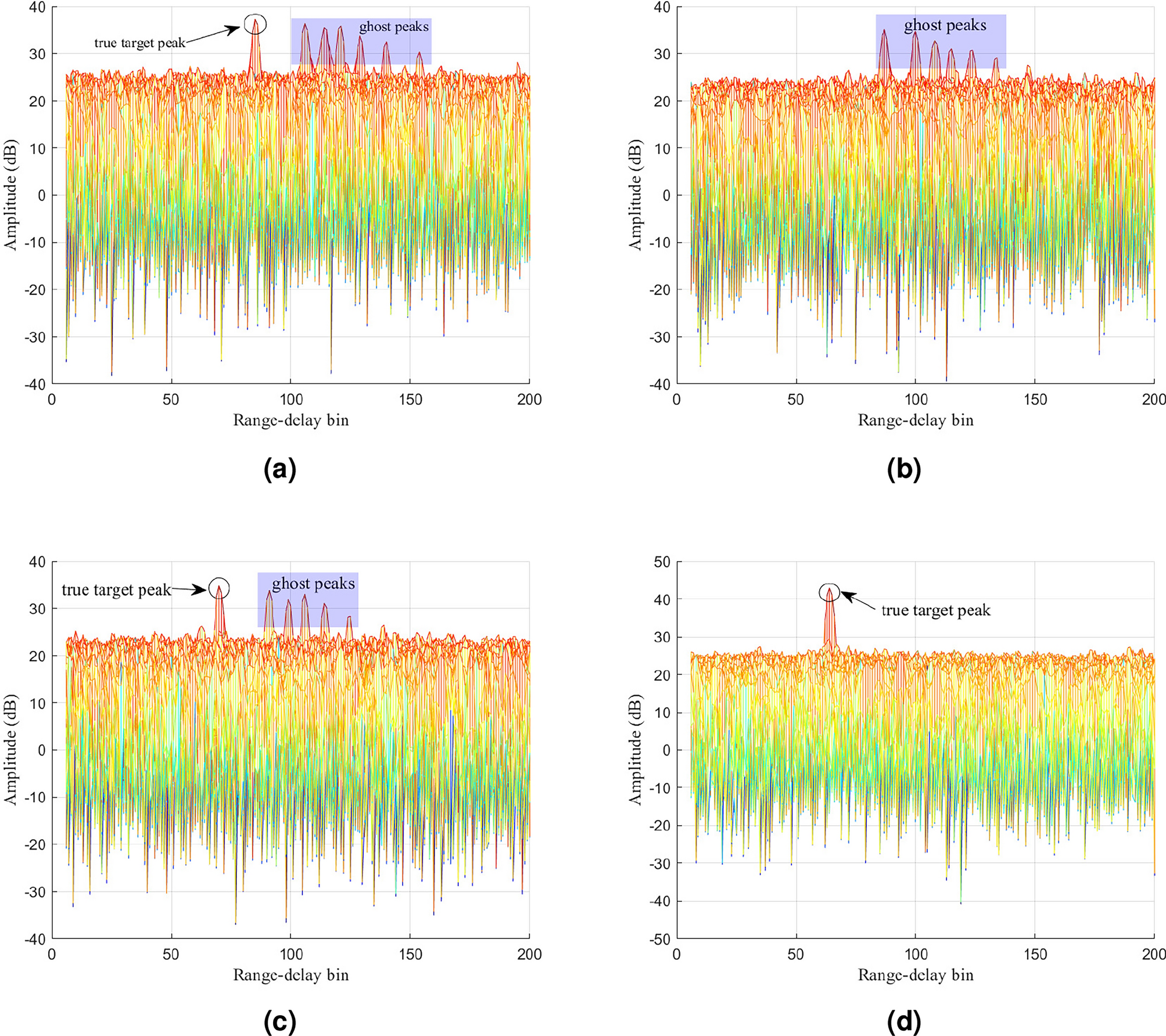

Range-domain side view of the matched-filter output obtained with the conventional method for a single frame in each of the four stages: (a) Stage I; (b) Stage II; (c) Stage III; (d) Stage IV.
