Fig. 7
From: Ghost peaks mitigation with target-contaminated reference signal in passive bistatic radar

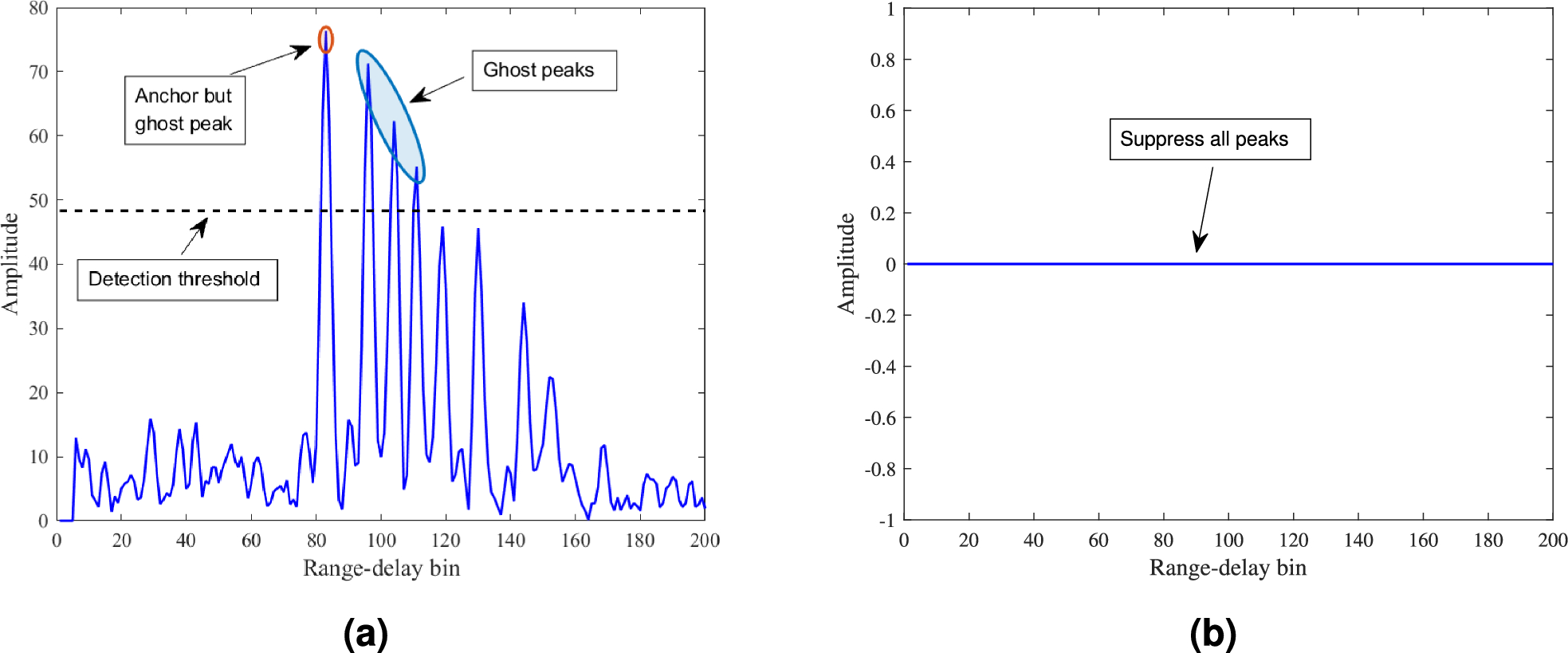

Processing of a representative frame in Stage II by the proposed method: (a) range profile showing clutter-induced spurious peaks; (b) detection result after masking, where all peaks are rejected, yielding an empty output.
