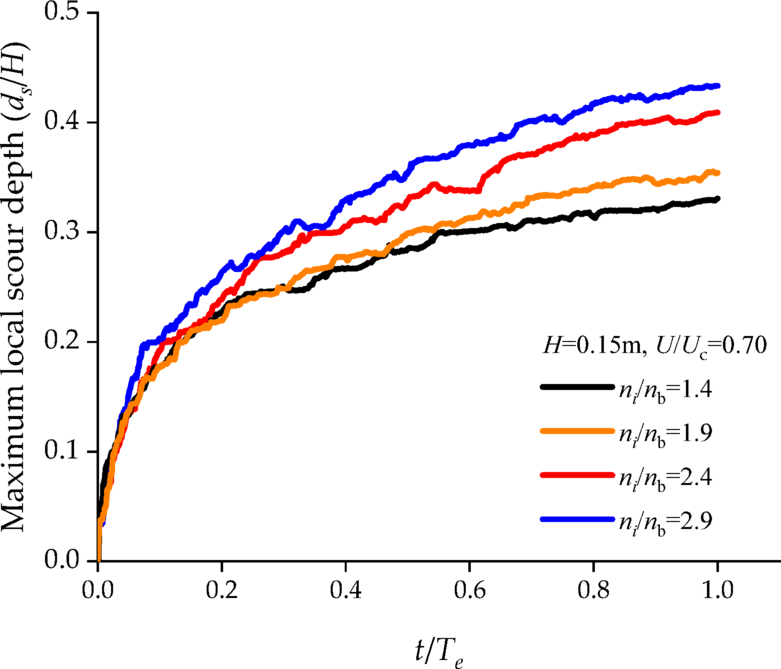

Fig. 17
From: Effect of ice cover roughness on local scour around bridge piers
Variation of maximum local scour depth around the pier over normalized time (t/Te) under simulated ice cover roughness conditions, where Te denotes the total simulated time.
