Fig. 7 | Scientific Reports

Fig. 7

From: Face expectancy cues differentially modulate conflict processing driven by emotional incongruence: an EEG study

Fig. 7

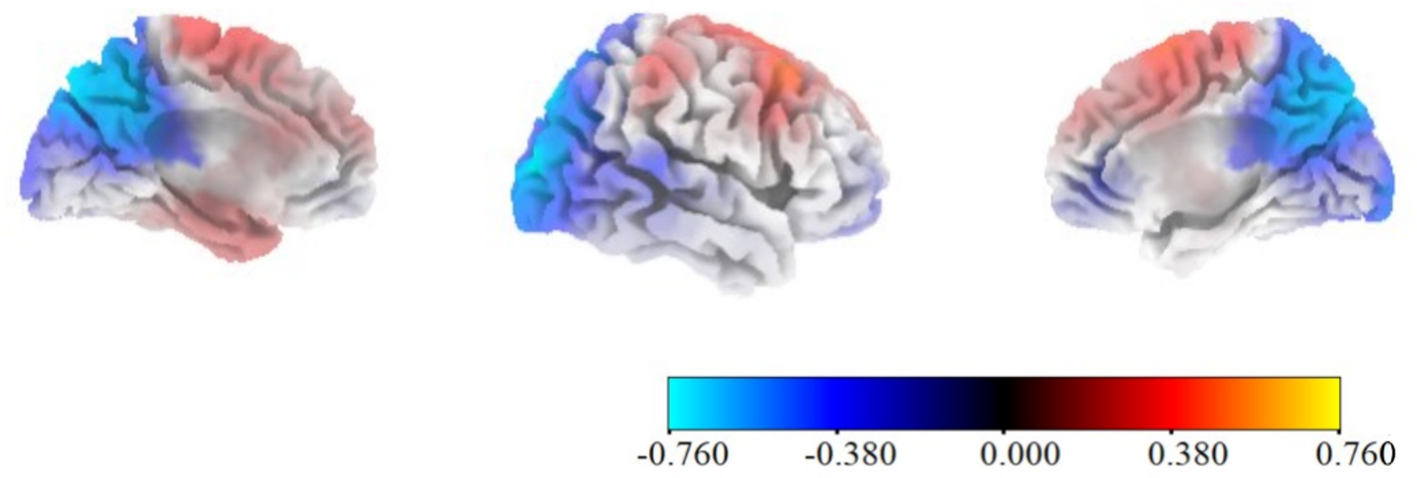

sLORETA source localization results. sLORETA signed lnF maps for the face-first (FF) vs. label-first (LF) expectancy contrast in low-beta (12–15 Hz) during 400–600 ms post-stimulus (conflict window). Inference used SnPM randomization (5000 permutations; paired) with FWER-corrected p = 0.05 critical lnF values: + 0.747 (FF > LF), − 0.742 (FF < LF); two-tailed = 0.783. The color scale encodes direction (warm = FF > LF; cool = LF > FF). A peak in BA7/precuneus at MNI (− 5, − 80, 50) reached lnF = − 0.760, significant one-tailed (p = 0.036, FWER-corrected) but not significant two-tailed (p = 0.076).
