Fig. 5

From: Design and optimization of CIGS-based solar cell with surface dielectric nanostructures arrangement

Fig. 5

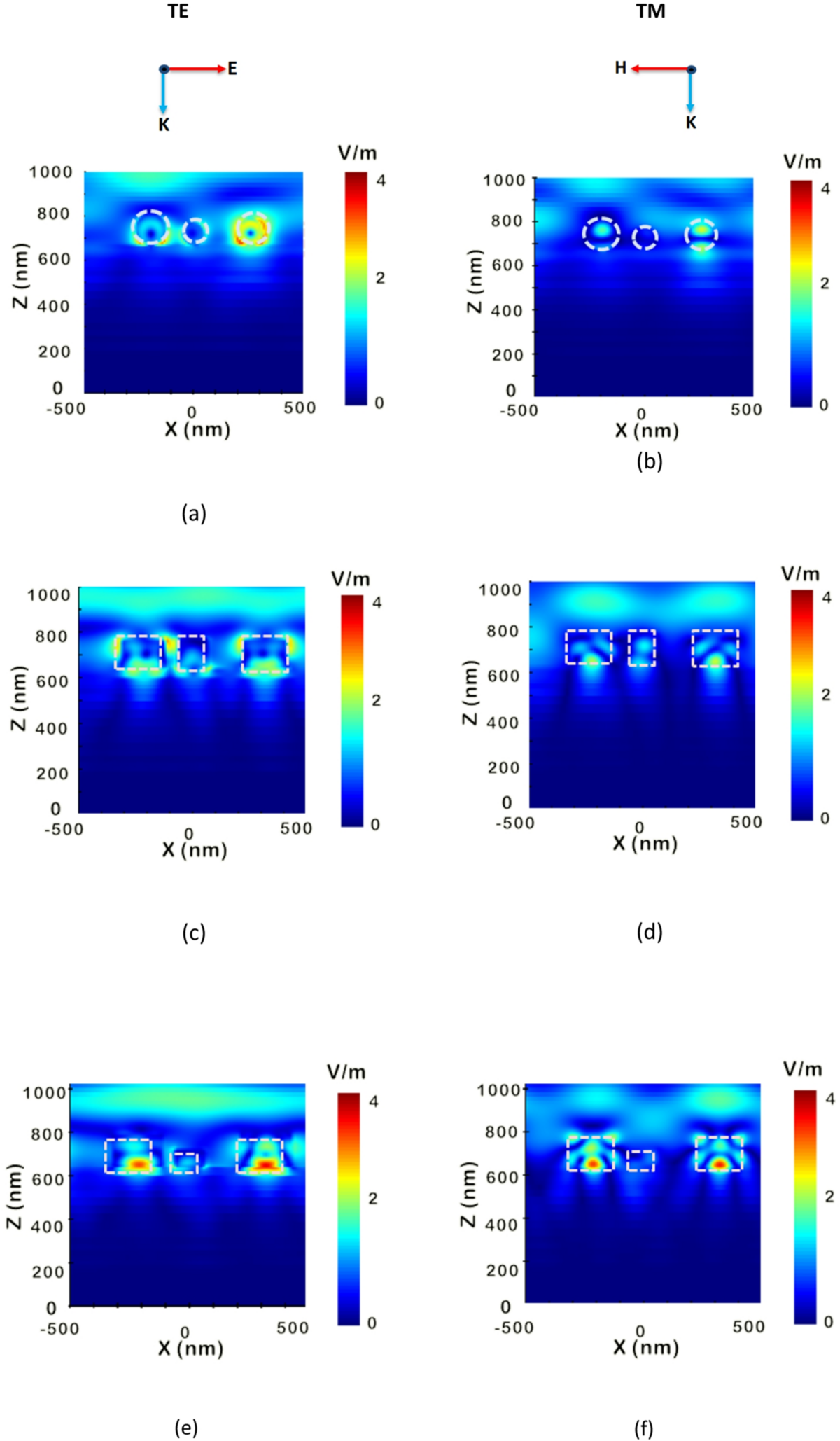

The electric field distributions in x-z plane for the suggested TFSC incorporating spherical, cylindrical, and cubic nano-particles under TE and TM polarizations at a wavelength of 450 nm. (a, b) Cubic nano-particles under TE and TM polarizations, respectively, (c, d) Cylindrical nano-particles under TE and TM polarizations, and (e, f) Spherical nano-particles under TE and TM polarizations.
