Fig. 2

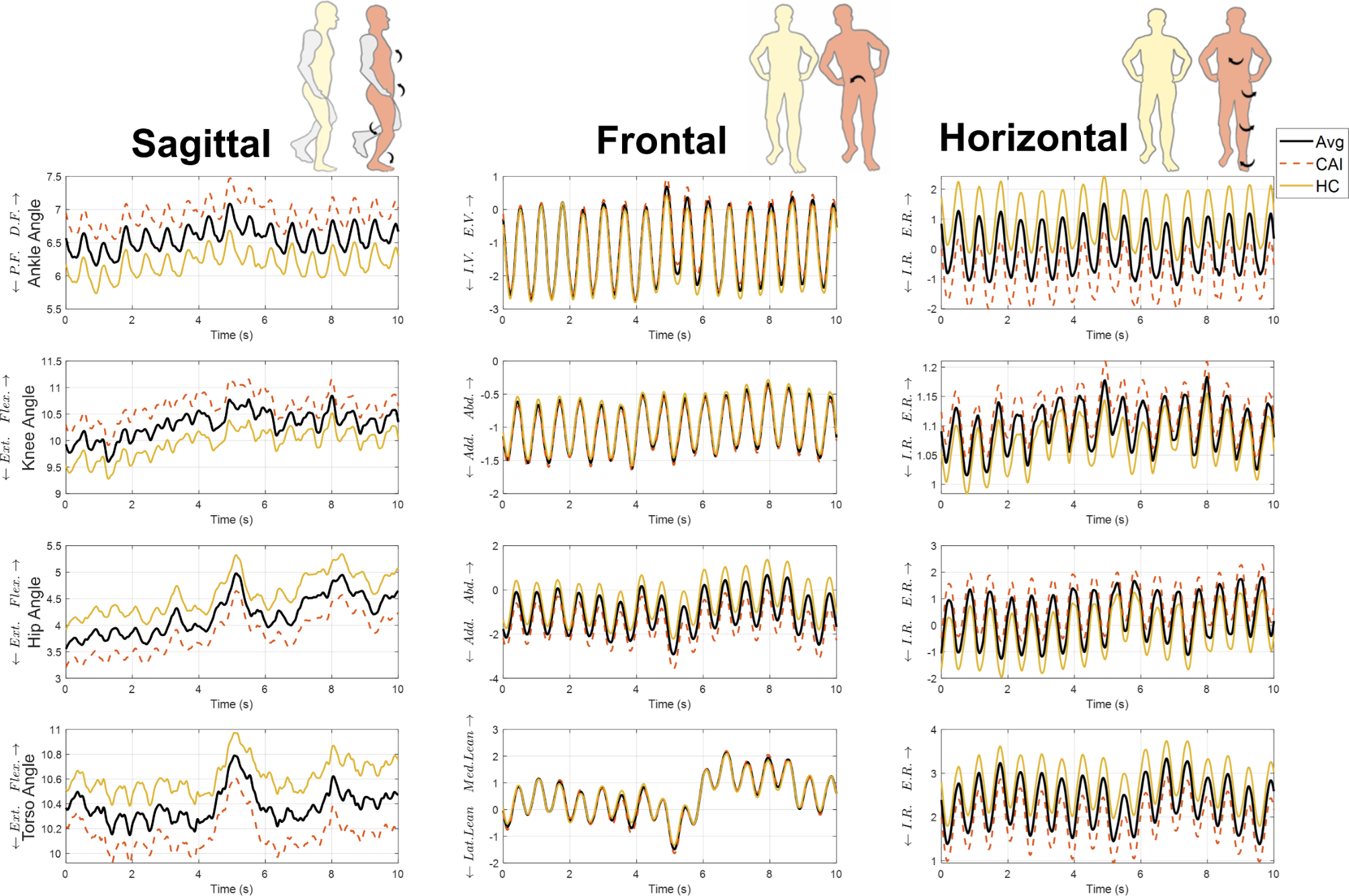

Joint kinematics reconstructed from the PCS of PCV3. Posture diagram: the right panel of each plane illustrated a specific movement pattern in CAI, with arrows indicating the kinematic differences compared to HC by PVC3. The waveforms: were reconstructed by the mean of PCS in participants with CAI, HC and all participants of PCV3. Avg. average of all participants. The plots show ankle, knee, hip and torso angles across sagittal, frontal, and horizontal planes over 10 s. The definitions of the abbreviations in the graph are as follows: D.F. dorsiflexion, P.F. plantarflexion, Flex. flexion, Ext. extension, E.V.: Eversion, I.V.: Inversion, Add. adduction, Abd. abduction, Lat. lateral, Med. Medial, I.R. internal rotation, E.R. external rotation. The figure was plotted by Matlab 2022b (https://uk.mathworks.com/products/matlab.html).
