Fig. 5
From: The effects of teleconnections on water and carbon fluxes in the two South America’s largest biomes

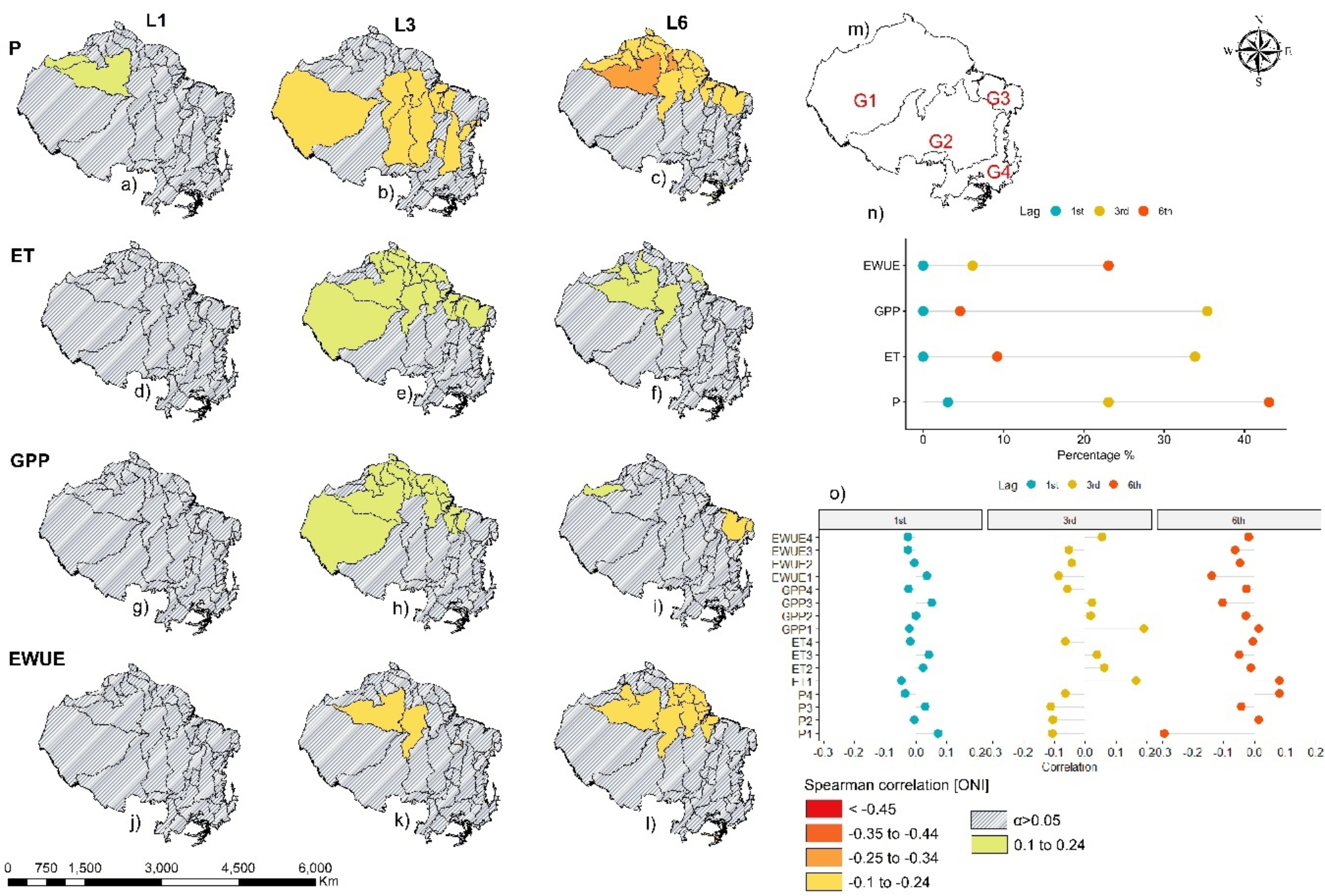

Spearman correlation between ONI, precipitation and biophysical variables, for time lags of 1, 3 and 6 months (a–l), where columns are time lags and rows are biophysical variables [e.g., (a) is the correlation between P and AMO with a 1-month lag; (b) is the correlation between P and AMO with a 3-month lag]; (m) distribution of groups of watersheds; (n) is the percentage of watersheds with significant correlations for each variable in the three lags; and o) Spearman correlation by cluster. The hitching identifies which case a particular watershed exhibits no statistical significance (α > 0.05) in the correlation. The map was created with ArcGIS Desktop 10.8.1 ( https://support.esri.com/en-us/patches-updates/2024/arcgis-desktop-10-8-1-general-component-updates-patch).
