Fig. 2
From: Dengue dynamics, predictions, and future increase under changing monsoon climate in India

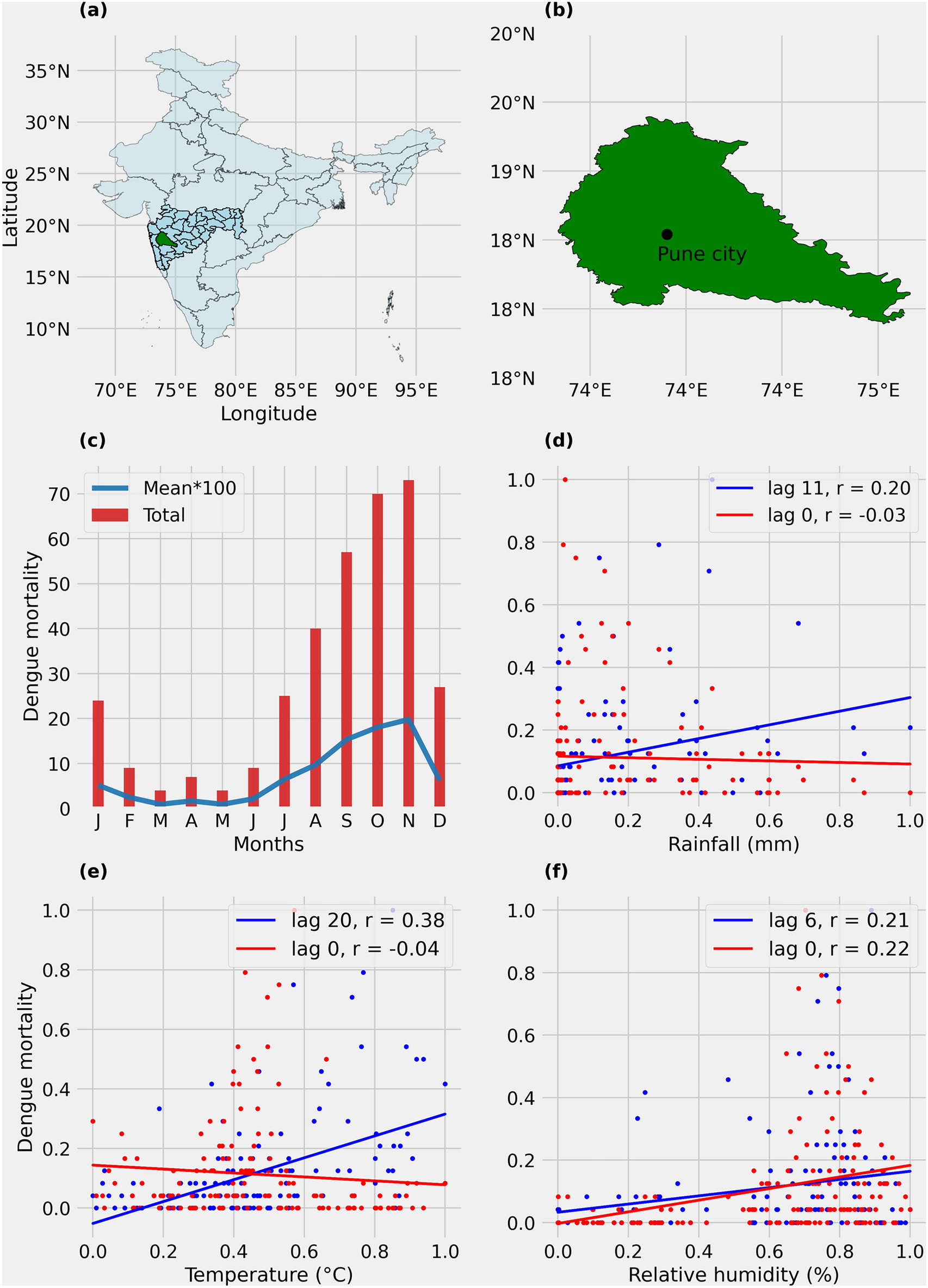

(a) Geographical details of Pune district in Maharashtra, India. (b) Detailed view of Pune district highlighted in green. (c) Monthly cumulative (red bars) and mean (blue line) dengue mortalities over Pune from 2004 to 2015. Scatter plot (round markers) and linear fit (line plot) between normalized monthly mean values of (d) rainfall, (e) temperature, and (f) relative humidity on the x-axis and dengue mortalities over Pune on the y-axis. Data points are shown for zero lag in red and at the lag with maximum correlation in blue. Temperature, rainfall, and relative humidity show a statistically significant (p < 0.05) correlation of 0.38, 0.20, and 0.21 with dengue mortality at a lag of twenty weeks, eleven weeks, and six weeks, respectively.
