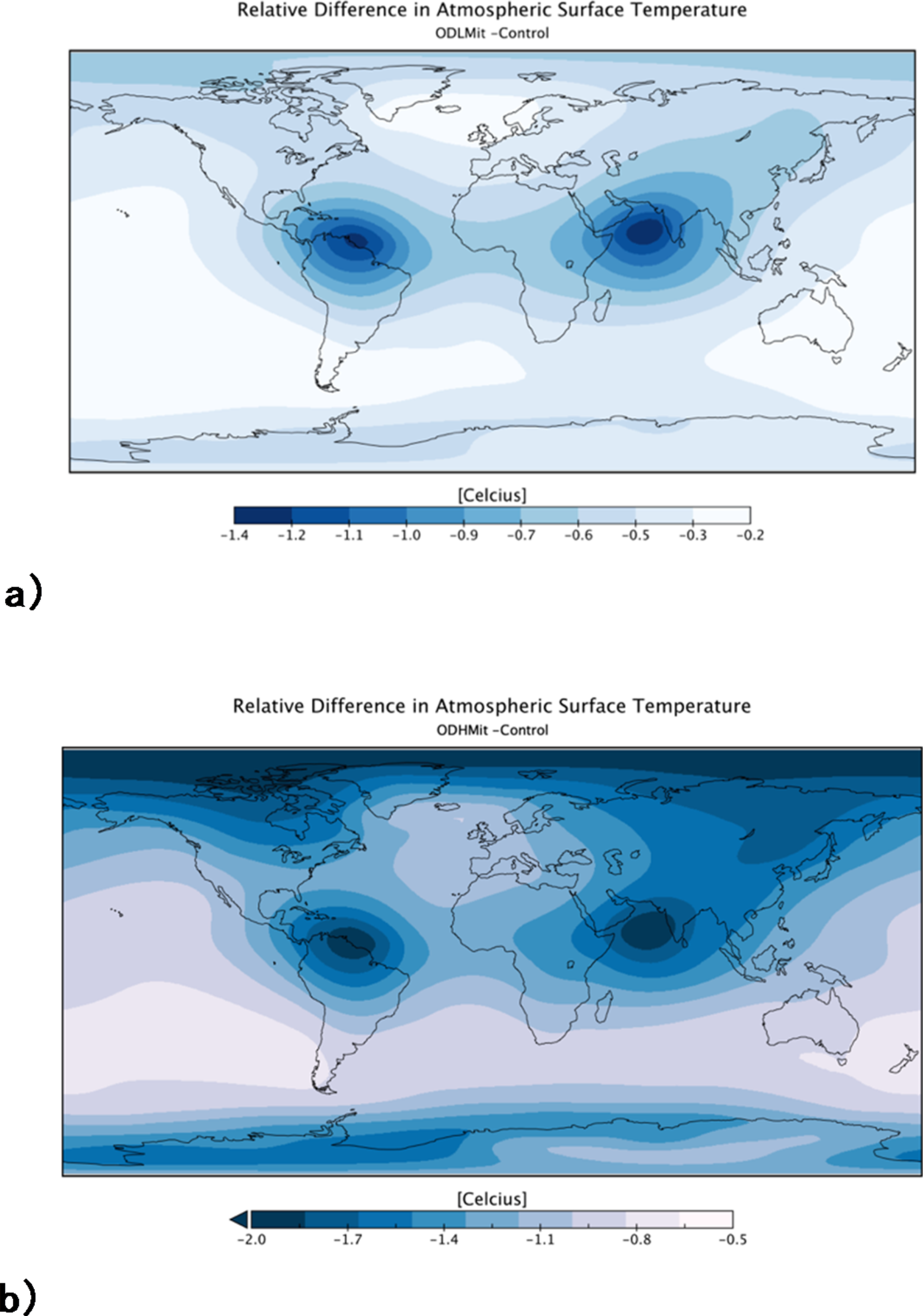

Fig. 3
From: Mitigating anthropogenic climate change with aqueous green energy
Difference in surface air temperature (°C) at year 2100 between (a) the ODLMit and Control experiments and (b) the ODHMit and Control experiments. OTEC deployment begins in 2030 and ends up producing 3TW of power for DACCS by 2100. Figure produced using Panoply, a freely available NSAS GISS data viewer: https://www.giss.nasa.gov/tools/panoply/.
