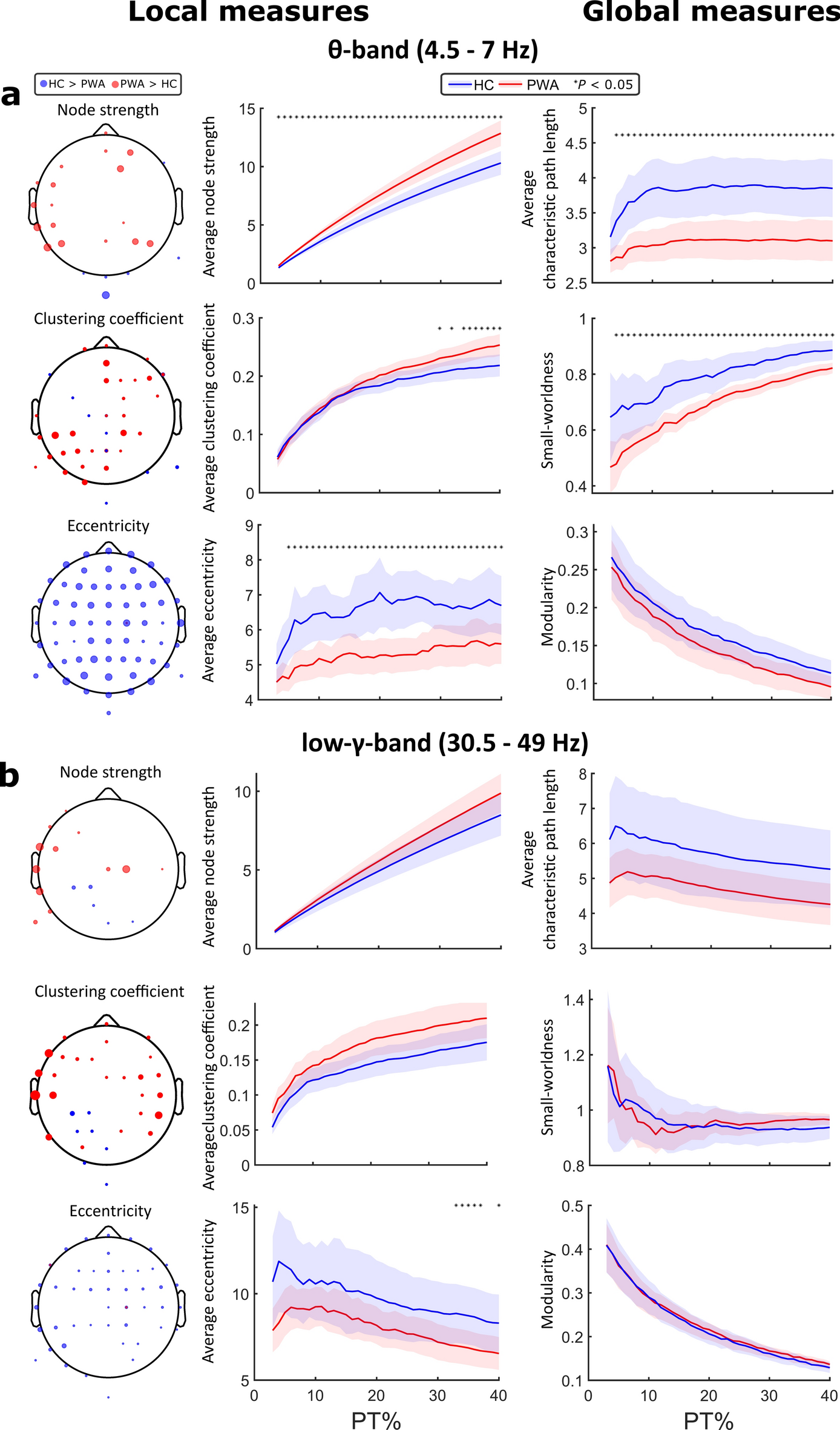

Fig. 3
From: EEG reveals brain network alterations in chronic aphasia during natural speech listening
Results of the graph theory analysis. Measures are compared between groups on average and locally with respect to the network density. Blue line: HC group; red line: PWA group. Dotted lines: 95% confidence interval. Blue node: graph measure higher in HC compared with PWA; red node: graph measure higher in PWA compared with HC. Size of the node is proportional to the occurrence of test-significance across PT% values. Statistics are uncorrected for number of nodes. (A) Outcome for the theta (θ)-band network. All measures were different between groups except for the modularity; local measures showed node-specific between-group differences. (B) Outcome for the low-gamma (γ)-band network. Inconsistent differences emerged globally, whilst we found consistent local differences.
