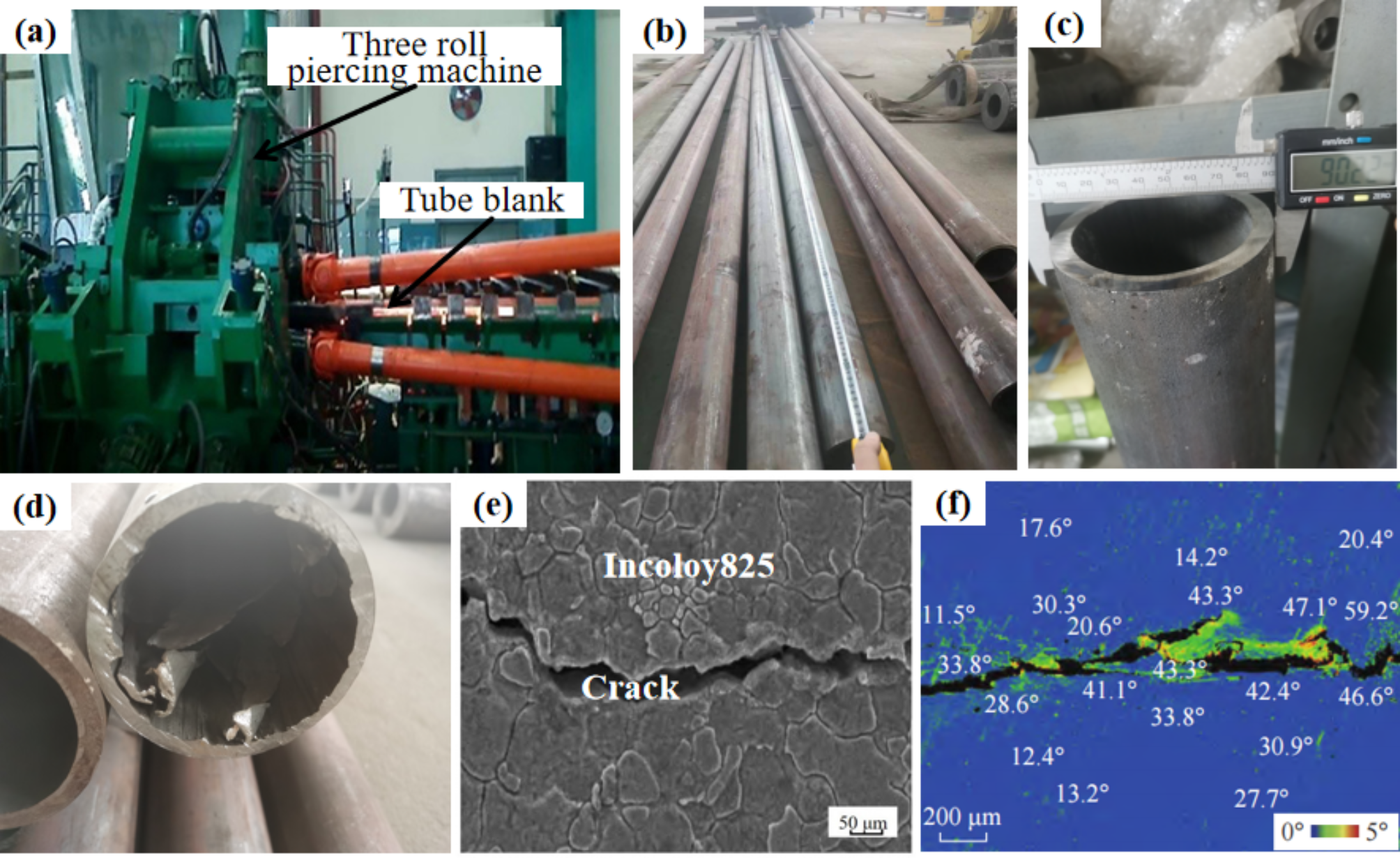

Fig. 13

Experiments on the Incoloy825/P110 bimetallic composite seamless pipe: (a) Perforation process diagram, (b) The length, (c) diameter, and (d) damage of the composite pipe, (e) Incoloy825 crack microstructure, (f) Stress distribution and grain boundary distribution of cracks.
