Fig. 2

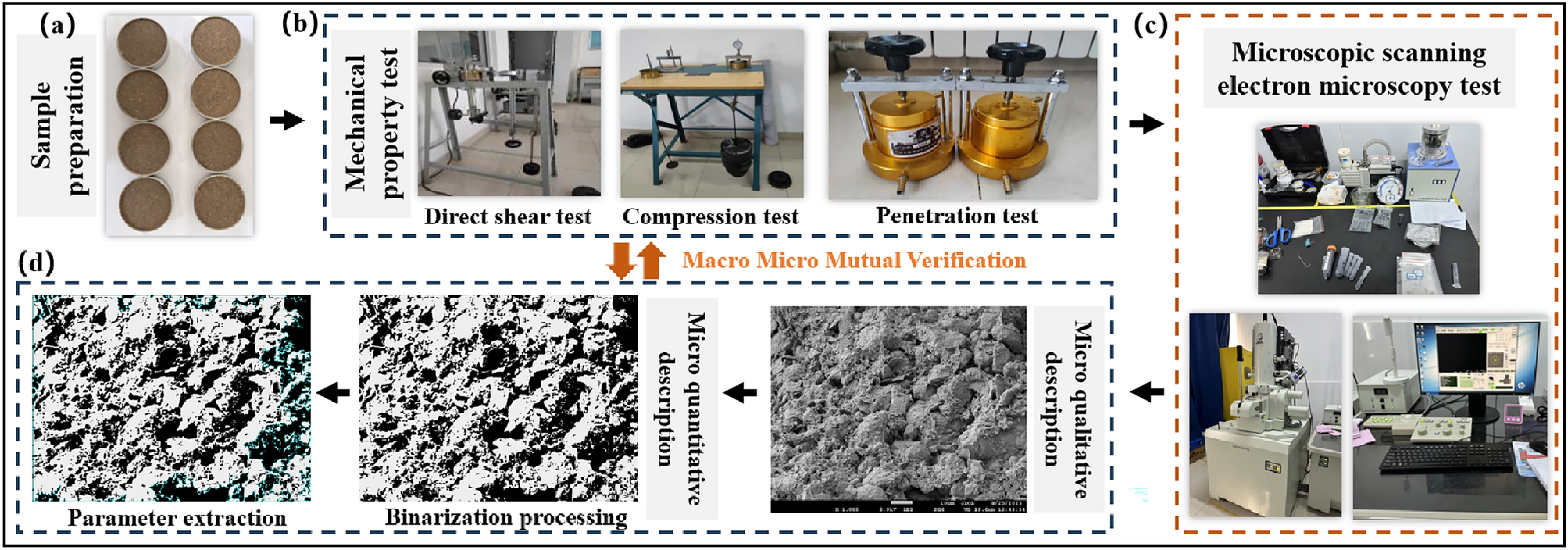

Schematic diagram of the test process: (a) specimen preparation; (b) instruments used for the direct shear test, compression test, and penetration test; (c) gold spraying treatment and SEM test; (d) qualitative and quantitative analysis of microstructural changes using SEM images.
