Fig. 6 | Scientific Reports

Fig. 6

From: Identifying KLF14 as a potential regulatory factor in liver regeneration trough transcriptomic and metabolomic

Fig. 6

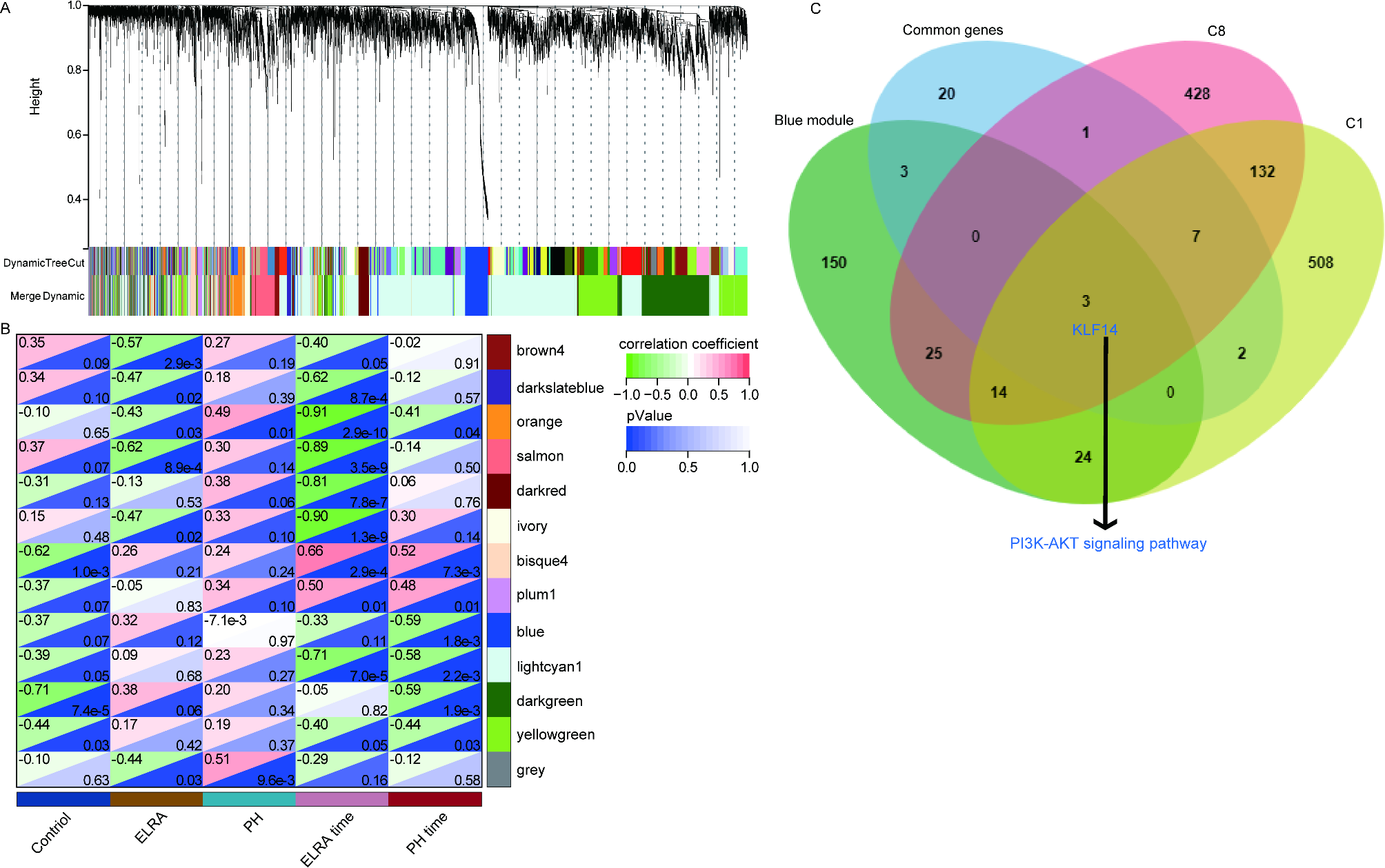

Weighted Gene Co-expression Network Analysis (WGCNA) of gene modules in liver regeneration. (A) Hierarchical clustering dendrogram showing gene modules identified using WGCNA. (B) Module-trait relationships. The heatmap displays the correlation coefficients (top half of each cell) and corresponding p-values (bottom half of each cell) between the identified gene modules and clinical traits, including control, ELRA, PH, ELRA time points, and PH time points. (C) KLF14 was identified key regulatory gene involved in liver regeneration.
