Fig. 3 | Scientific Reports

Fig. 3

From: Radio-protective effects of ultra-fine bubble hydrogen water and serum protein responses in whole-body radiation-exposed mice

Fig. 3

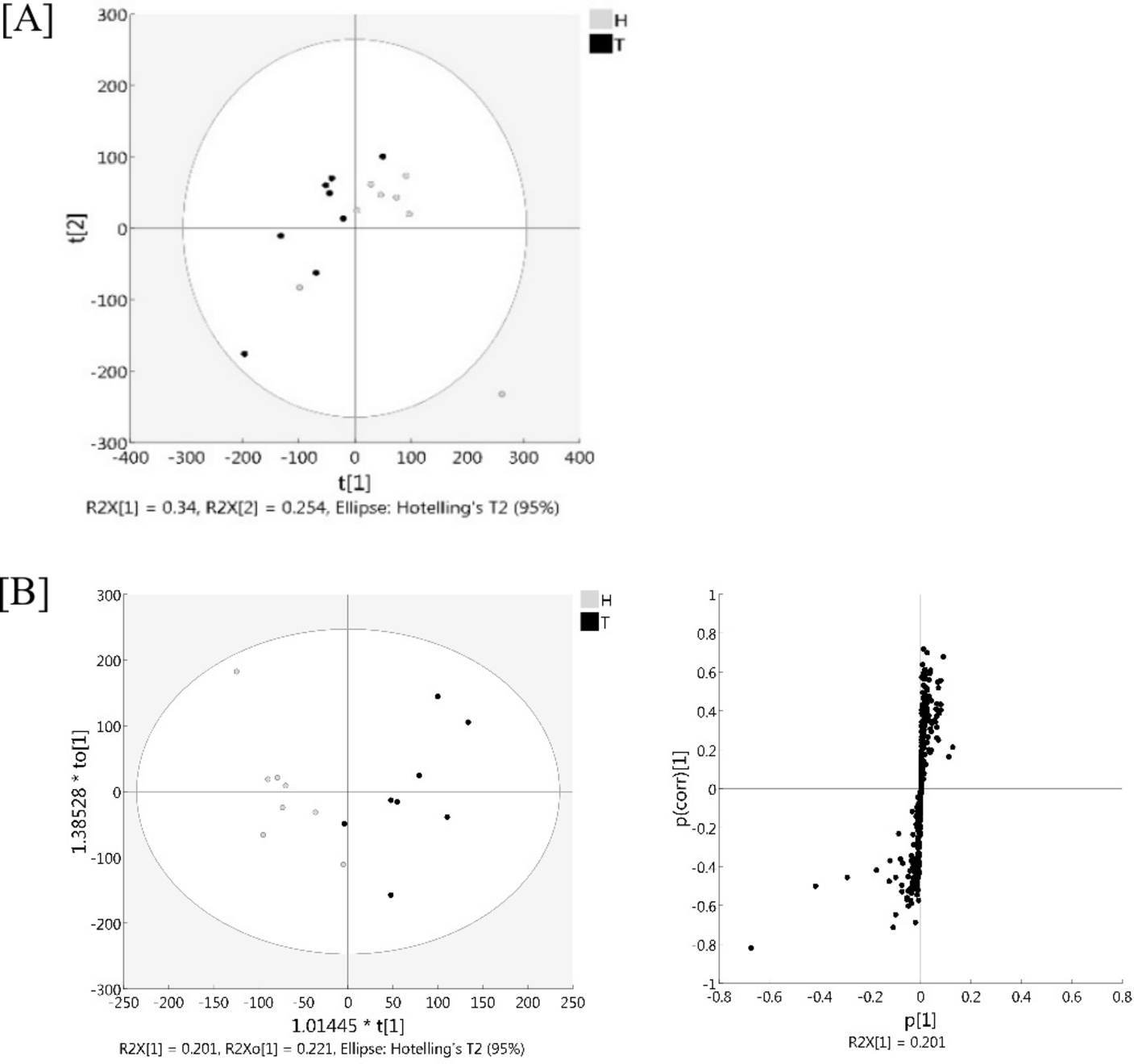

Proteomic analysis of serum from WBI mice constantly having ingested UBHW. (A) A PCA overview of all 16 mice serum samples (n = 8 per each group). Uncharacterized samples are plotted at the center, and those with features are plotted at a distance from the center. Similar features are plotted at close positions. (B) Score scatter plots of the OPLS-DA model based on serum proteome data. A score scatter plot (left panel) and S-plot (right panel) are represented. The ellipse in each score scatter plot indicates this model’s Hotelling T2 (0.95) range. Gray circles (H) or black circles (T) mean WBI mice treated with UBHW or TW, respectively.
