Fig. 6

From: Variability in storm season intensity modulates ocean acidification conditions in the northern Strait of Georgia

Fig. 6

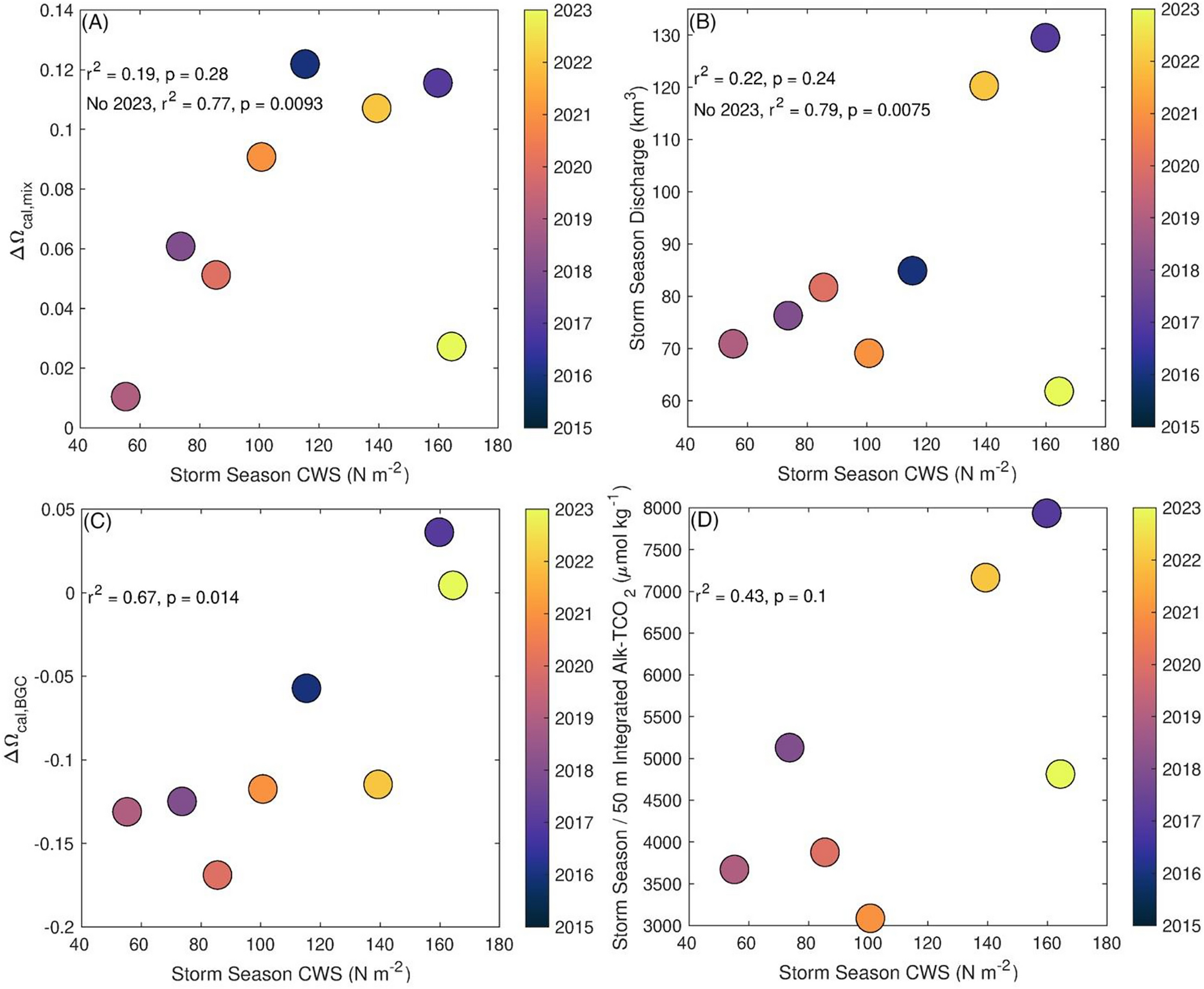

Storm season intensity versus primary components of ∆Ωcal decomposition and associated factors. (A) Storm season CWS (N m-2) and annual mean ∆Ωcal,mix. (B) Storm season CWS (N m-2) and storm season discharge (km3). (C) Storm season CWS (N m-2) and annual mean ∆Ωcal,BGC. (D) Storm season CWS (N m-2) and the difference between alkalinity and TCO2 integrated over the upper 50 m over the storm season (Storm season / 50 m integrated Alk-TCO2; µmol kg-1).
