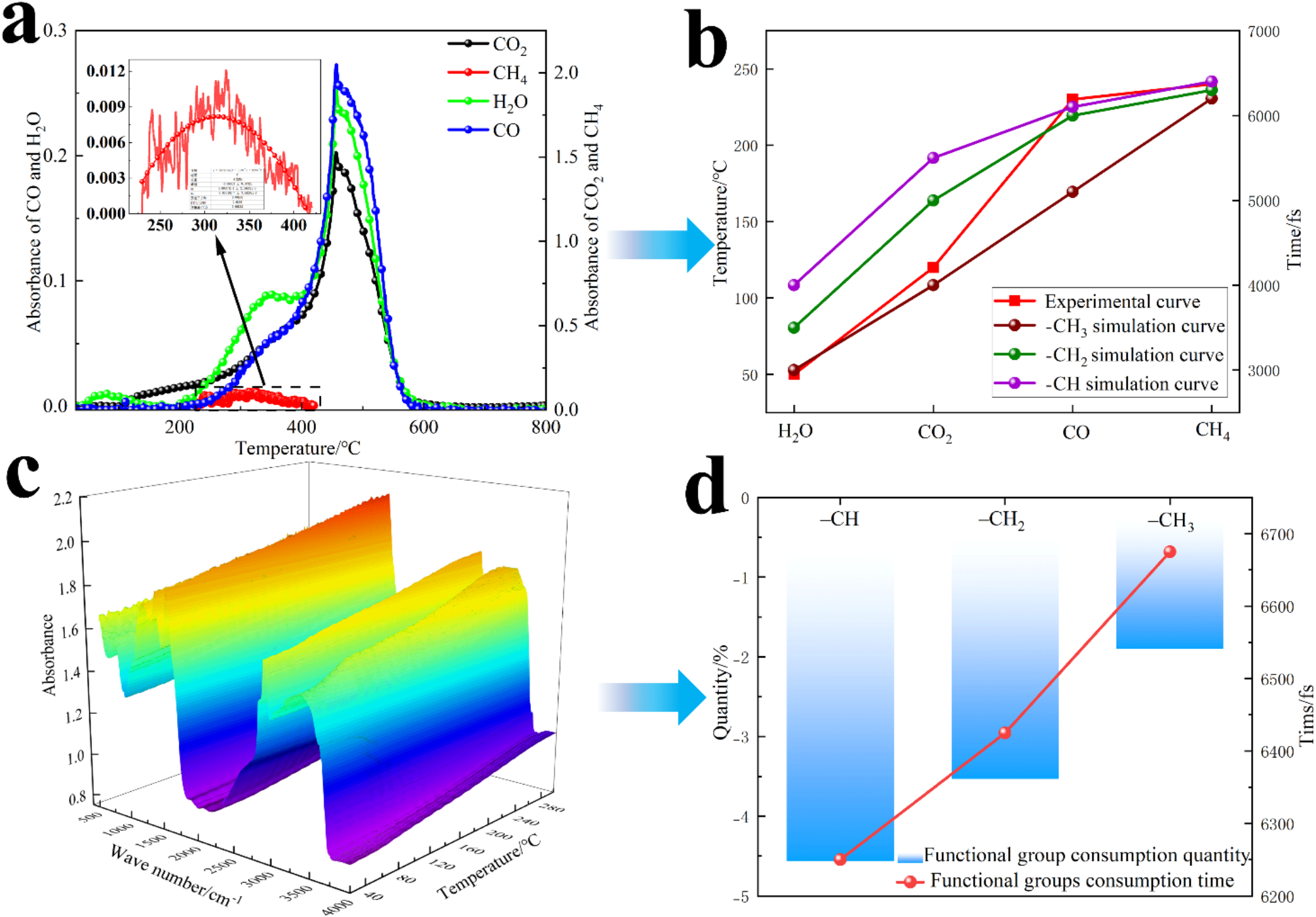

Comparison between simulation and experiment. (a) Distribution law of gas phase products of long-flame coal in air atmosphere; (b) Comparison of gas phase product distribution between simulation and experiment. (c) In-situ 3d infrared map of long-flame coal in air atmosphere; (d) Comparison of functional groups consumption between simulation and experiment.
