Fig. 2
From: Evolution law of surrounding rock stress field for ultra-deep shaft development blasting

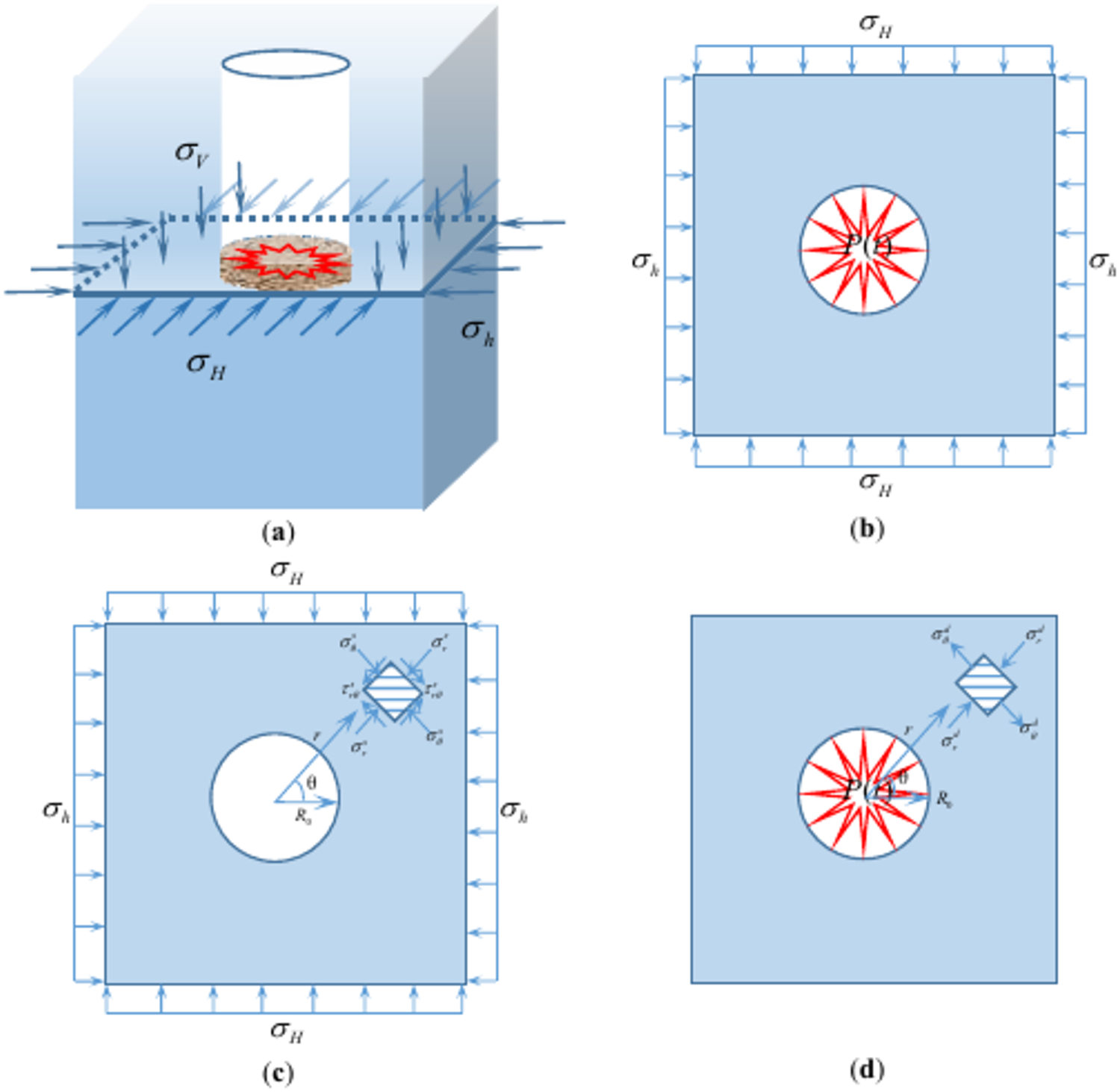

Geometric models for theoretical analysis:(a)The overall stress state of the shaft; (b) Elastic dynamic problems under plane strain condition; (c) Stress analysis under static load; (d) Stress analysis under dynamic load.
