From: Effect of Dzyaloshinskii Moriya interaction on magnetic tunnel junction based molecular spintronics devices (MTJMSD)

Fig. 2

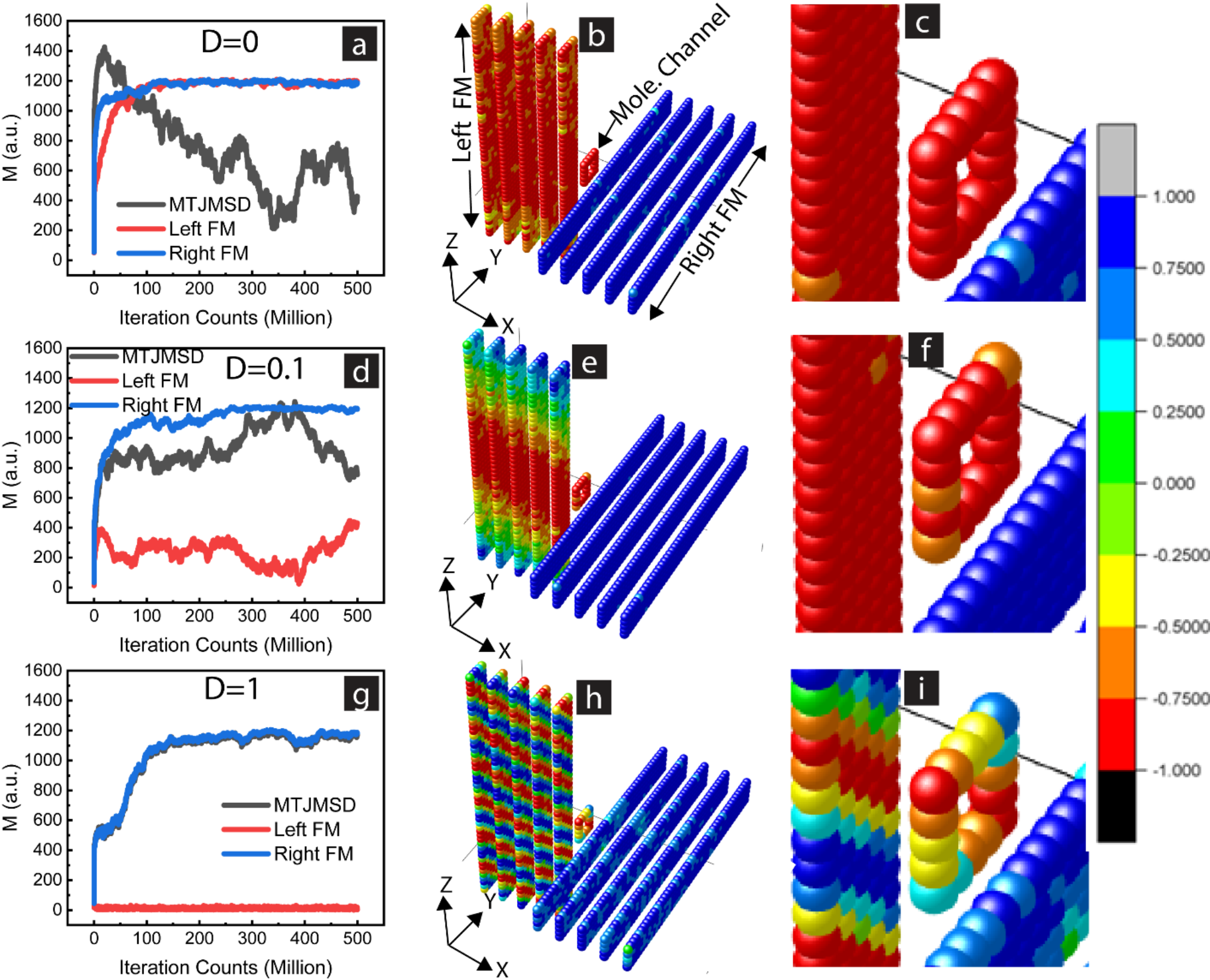

Monte Carlo simulations result investigating the effect of DMI on the MTJMSD devices. Temporal progression of magnetic moments of the left electrode, right electrode, and MTJMSD at the magnitude of DMI (D) value (a) 0 (d) 0.1 (g) 1. Equilibrium states of a simulated spatial 3-D lattice model of the MTJMSD measured at KT = 0 0.1 for DMI values (b) 0, (e) 0.1 (h) 1. Zoomed-in a snapshot of the equilibrium state of the molecule between single layers of right and left electrode for DMI values (c) 0, (f) 0.1, (i) 1. Spin direction along the x-axis for the magnitude of DMI 0 and along the y-axis for both DMI values 0.1 and 0.
