Fig. 4

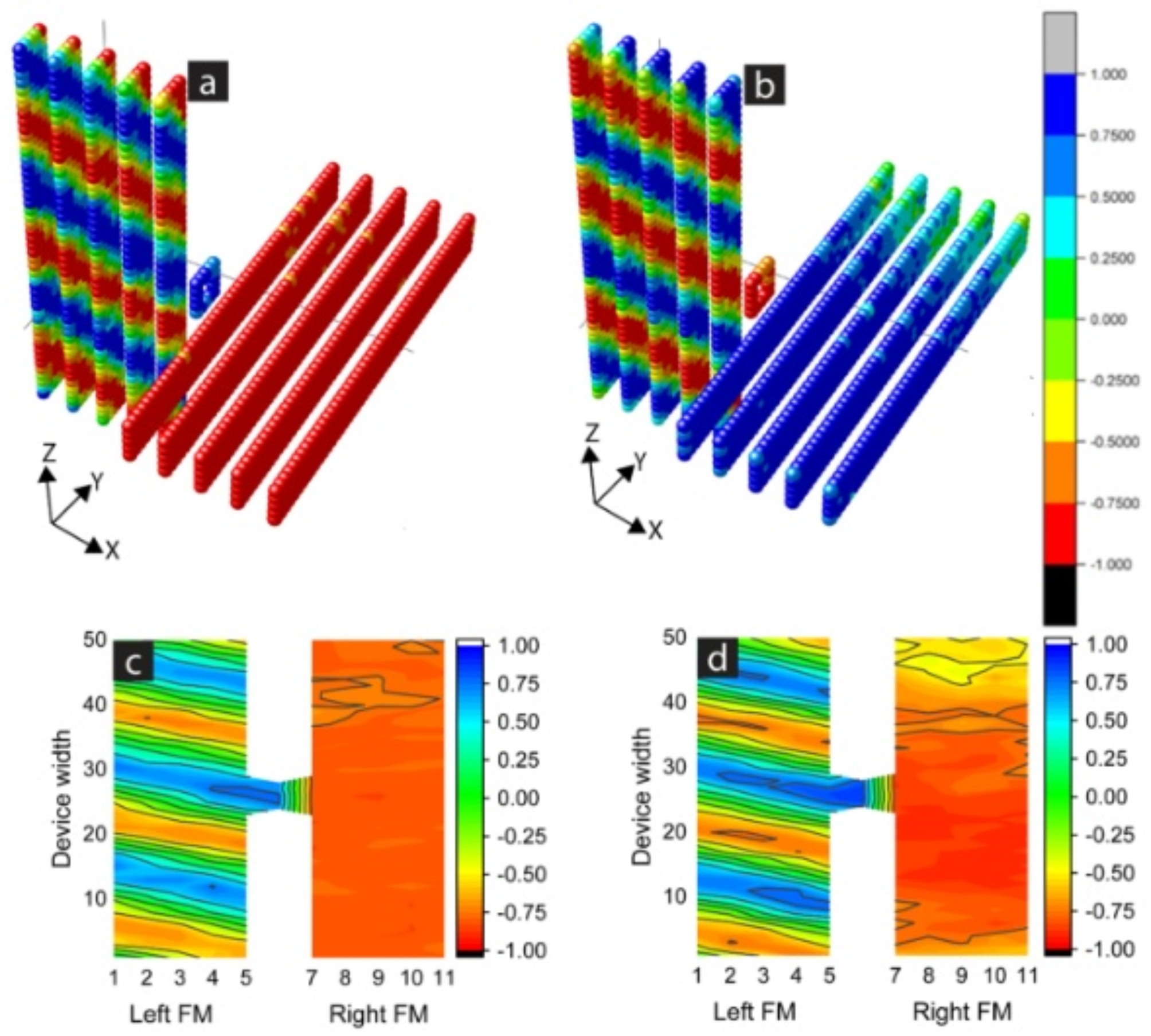

3-dimensional spatial lattice model at the end of simulation for DMI magnitude (D) = 0.4 for the (a) first and (b) third run. The spins are along the y direction. (c) and (d) are the 2-dimensional spatial correlation (SC) contour plots for the respective runs.
