Fig. 13

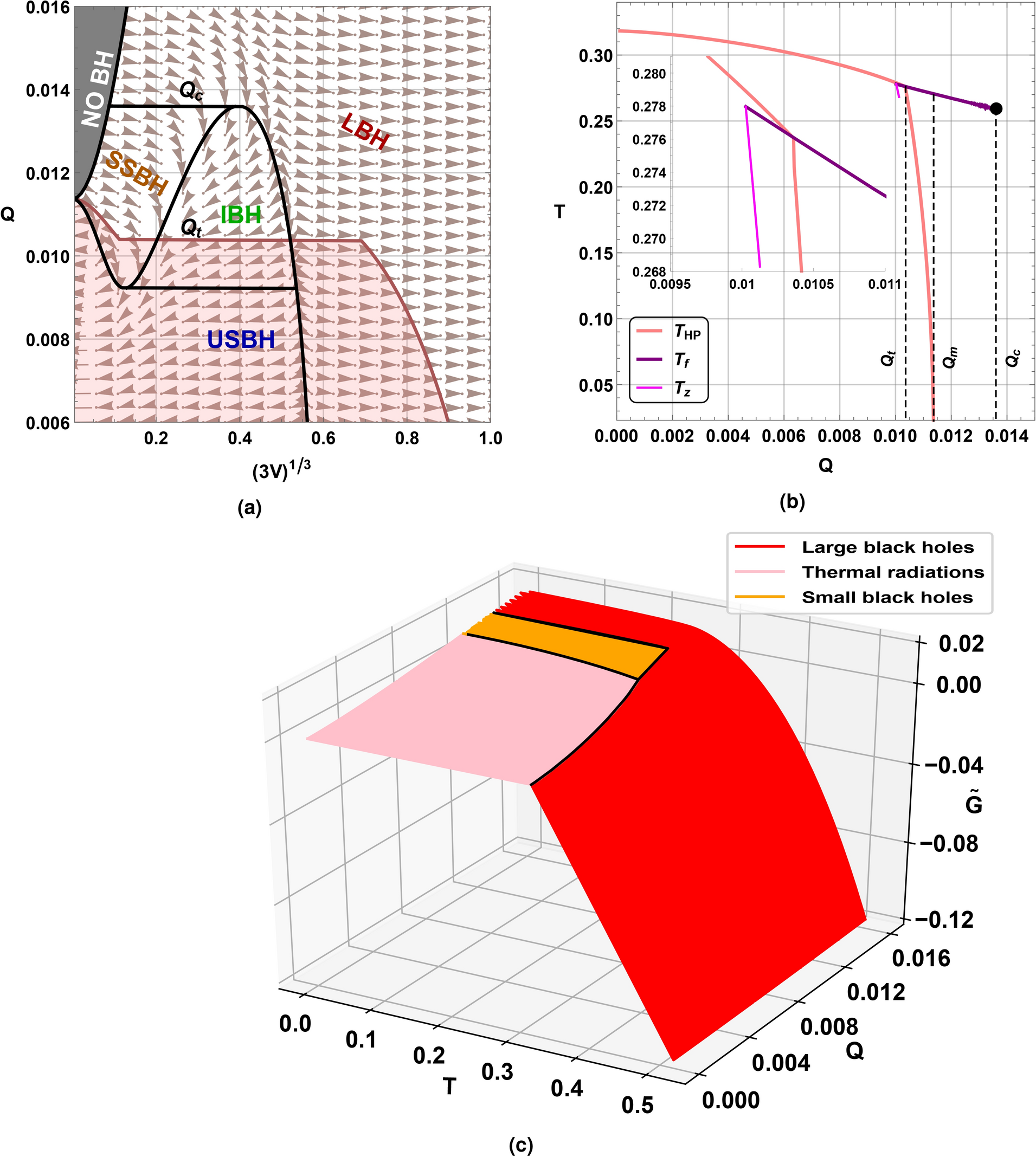

(a) \(Q-V\) diagram of Born–Infeld-AdS black hole; the flow indicates the temperature gradient. (b) Critical temperatures as a function of electric charge. (c) On-shell Gibbs free energy as a function of temperature and electric charge. \(l=1\) and \(b=3.5\).
