Fig. 5

From: Proteomic profile of human sinoatrial and atrioventricular nodes in comparison to working myocardium

Fig. 5

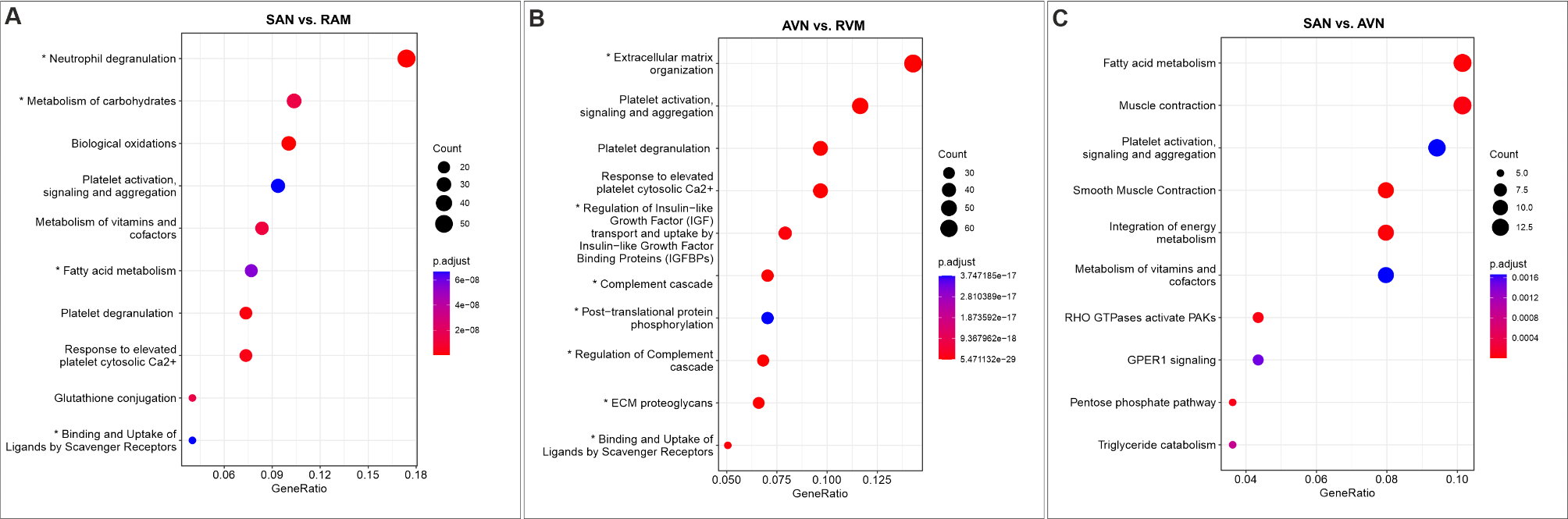

Pathway-based analyses showing (A) increased expression in the sinoatrial node (SAN) compared to the myocardium of right atrium (RAM), (B) increased expression in the atrioventricular node (AVN) compared to the myocardium of right ventricle (RVM), (C) increased expression in the SAN compared to the AVN. The genes encoding proteins involved in the pathways marked by * have been outlined in individual Supplementary Tables 4 and 5.
